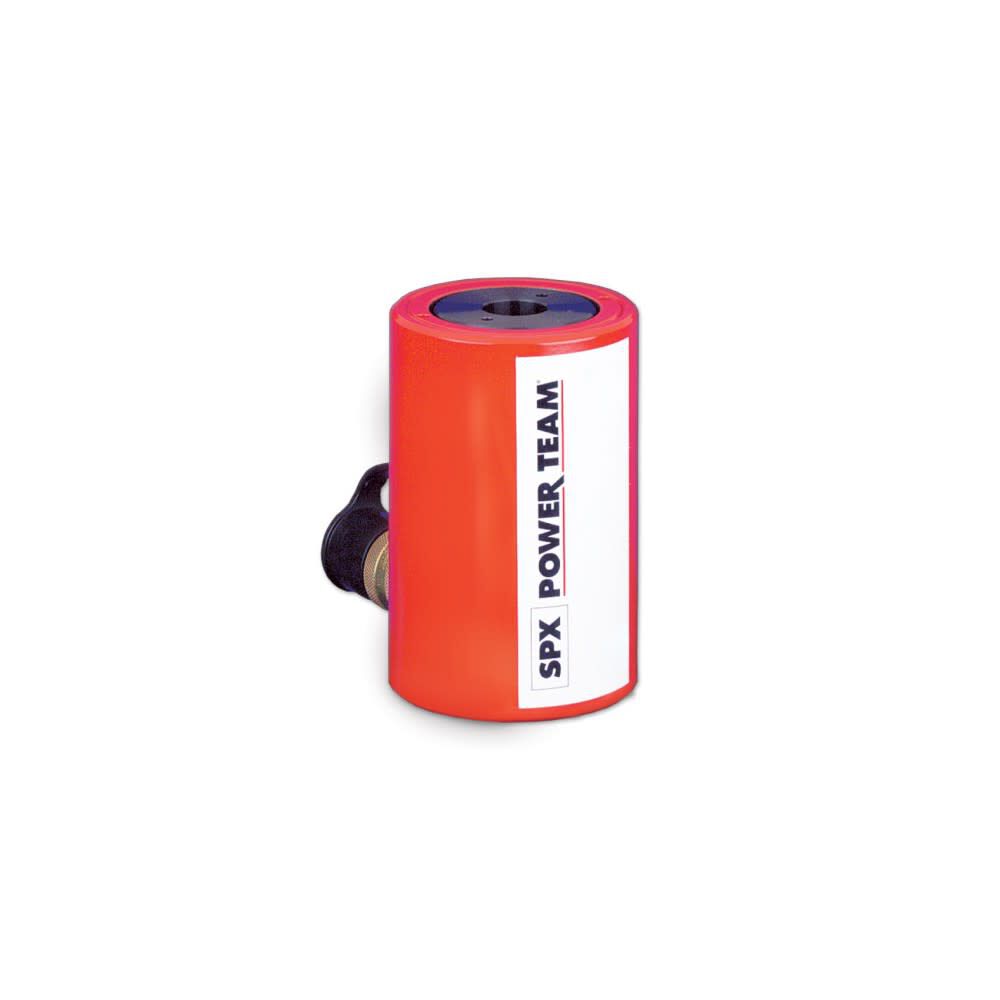

Power Team 60 Ton 3in Cylinder Stroke RH Series Double Acting

Description

Force seized assemblies with Power Team 60 Ton 3in Cylinder stroke capacity when maintenance work leaves only limited hydraulic travel. Experienced millwrights and structural technicians gain double-acting extension and retraction during cable tensioning, anchor-bolt work, flange separation, and forcing operations, but can a 60-ton cylinder tolerate off-center loading without proper support? Its aluminum cylinder body and piston, plated rod, treated standpipe, over-pressure protection, and 3/8-inch NPTF couplers support controlled hydraulic movement.

Model RHA604D belongs to the RH Series double-acting cylinders and provides a 3-inch stroke. Product data lists a 36-lb weight, removable carrying-handle compatibility for large RH cylinders, interchangeable piston-head inserts, a threaded collar, and 9796 3/8-inch NPTF female half couplers. Power-Tech treatment protects the standpipe from corrosion, while plated piston surfaces and superior packings support repeated hydraulic cycles.

Features of Power Team RH

Industrial maintenance, bridge repair, structural tensioning, and machinery alignment require a hydraulic cylinder that can extend and retract under controlled pump pressure. Trained operators can use this double-acting cylinder with compatible Power Team equipment after verifying load direction, pressure rating, saddle contact, and mechanical support.

• 60-ton capacity supports compatible forcing, tensioning, and heavy alignment applications.
• 3-inch stroke provides controlled hydraulic movement for short-travel adjustments.
• Double-acting operation powers both extension and retraction.
• Aluminum cylinder body reduces the listed 36-lb product weight.
• Aluminum piston supports the RHA604D construction configuration.
• Power-Tech-treated standpipe resists corrosion during industrial service.
• Plated piston rod resists wear during repeated cycling.
• Built-in protection helps prevent retraction-circuit over-pressurization.

Hydraulic Load Test Control

No independent pressure telemetry, seal-leak test, piston-deflection measurement, proof-load certification, stroke-speed result, or off-center loading test was supplied. Do not treat 60 tons as a proof load or operate beyond the pump and cylinder pressure rating. Side loading, unstable saddles, damaged couplers, contaminated fluid, and inadequate cribbing can cause uncontrolled movement or load loss.

Hydraulic Limits Service

The double-acting circuit, 3-inch stroke, treated standpipe, plated piston rod, threaded collar, and over-pressure protection support controlled forcing and tensioning. This cylinder is not verified for personnel lifting, unsupported suspended loads, side loading, pulling beyond rated configuration, or service without mechanical blocking.

• Inspect the piston rod, body, gland, couplers, standpipe, collar, and hose connections.
• Use clean compatible hydraulic fluid and protect couplers from contamination.
• Support raised loads mechanically and remove the cylinder after leakage or rod damage.

Warranty Compliance Contents

Power Team lists a Lifetime Warranty Against Manufacturer’s Defects for model RHA604D. Package contents identify one 60-ton cylinder. Confirm current warranty terms, ANSI/ASME documentation, pump compatibility, coupler configuration, piston-head inserts, operator instructions, and inspection requirements before hydraulic service.
