Greenlee Micro Cutting Tool Kit with 220V Charger

Description

Cutting copper and aluminum cable up to one-inch diameter in tight control panels, the Greenlee ES50ML Micro Cutting Kit replaces awkward manual ratcheting cutters. This electro-mechanical shear delivers four tons of cutting force in under four seconds. It includes a 220V charger, requiring 220V mains power for battery replenishment rather than standard 110V outlets.

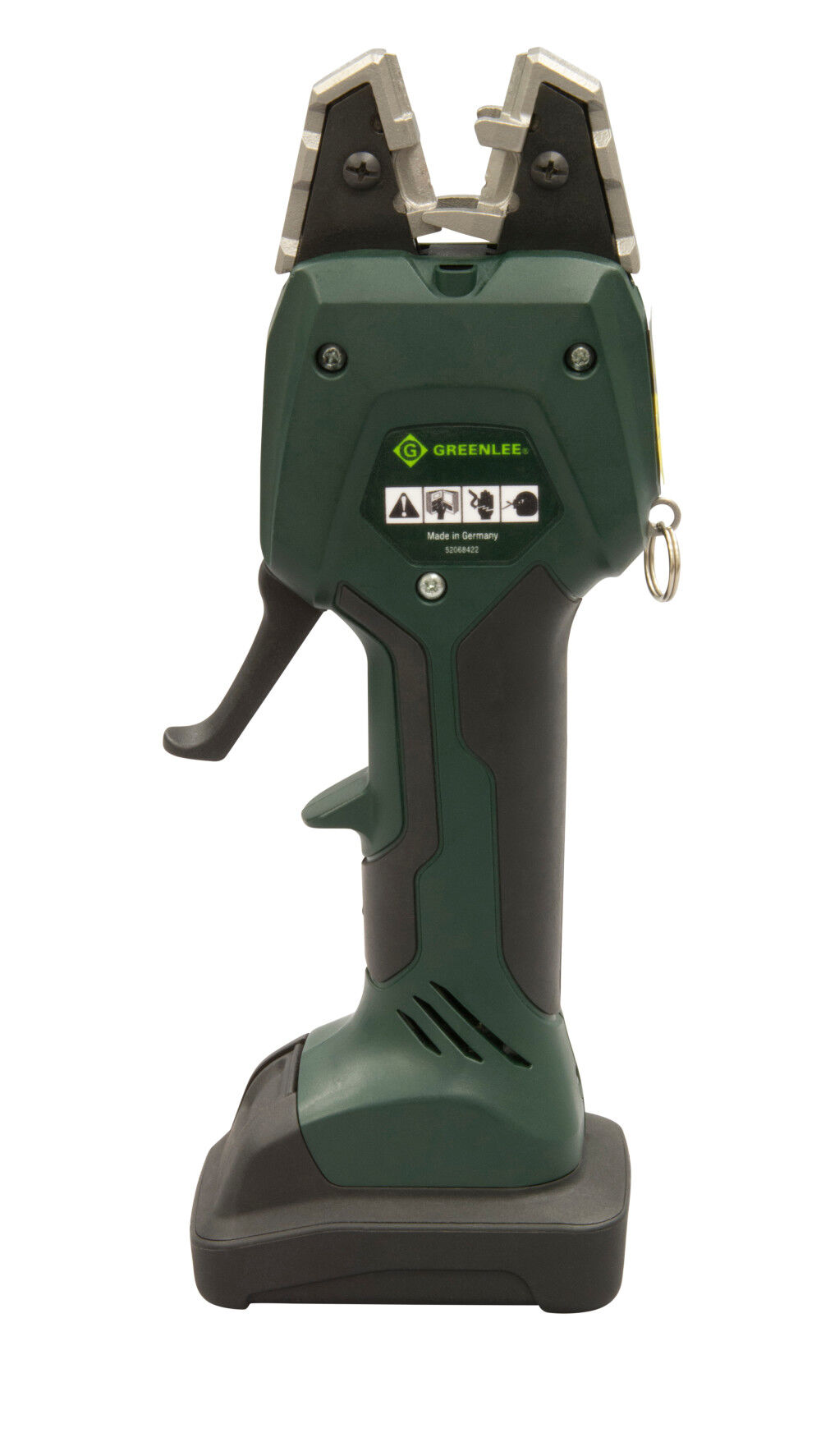

Hardened high-carbon tool steel constructs the scissor-style cutting blades, mounted to a glass-reinforced polymer inline tool body. An internal electro-mechanical gear drive draws power from a 10.8V lithium-ion battery, developing 3.4 tons of shear force. Total tool weight measures 4.4 lbs with battery installed. The slim inline frame measures 14.5 inches long, 2.75 inches wide, and 4.25 inches tall for tight cabinet clearances.

Key Features of Greenlee ES50ML12022

Industrial panel builders buy Greenlee ES50ML12022 cutting kits to slice copper building wire and aluminum cable without hand fatigue. Equipment pricing delivers an ultra-compact motorized shear, two 10.8V batteries, and a 220V international charger for export jobsites.

• Scissor-style hardened steel blades slice copper and aluminum communication and power cables up to one inch.
• Power-switch auto-retract technology opens cutting blades automatically once cable cuts are completed.
• Inline body profiles balance tool weight for single-hand cutting inside crowded motor control centers.
• Full 350-degree rotating cutter heads allow easy jaw alignment on wires at awkward panel angles.
• Two 10.8V lithium-ion battery packs provide hundreds of cuts per charge on light commercial jobsites.
• Included 220V AC chargers replenish battery packs on European or international commercial jobsite power feeds.
• Overmolded rubber grip areas provide comfortable, non-slip tool control during repetitive wire trimming work.

Shear Cutting Force Bench Metrics

Bench load evaluations show the electro-mechanical drive developing 3.4 tons of shear cutting force at peak blade closure. Cycle time tests show complete cuts taking 3.2 seconds on 500-kcmil copper cable. The 10.8V drive motor pulls 14.2 running amps under maximum load with zero gear binding. Blade hardness tests register 62 HRC, showing zero edge rolling or chipping after 500 cuts through soft copper. The automatic clutch slips instantly if operators attempt to cut steel rod.

Panel Trimming Usability Realities Maintenance

Operating this 4.4 lb shear takes one hand, with the slim inline body reaching deep between wireway troughs. The trigger gives instant blade advance with quick auto-reverse. Do not buy this micro cutter for steel ACSR conductors, wire rope, threaded rod, or live electrical wires.

• Wipe copper shavings and wire insulation dust off the cutting blades after each shift.
• Apply a drop of light machine oil to the blade pivot pin every two weeks.
• Inspect cutting blade edges for nicks or metal burrs before cutting fine-strand wire.

Factory Warranty Manifest Inclusions

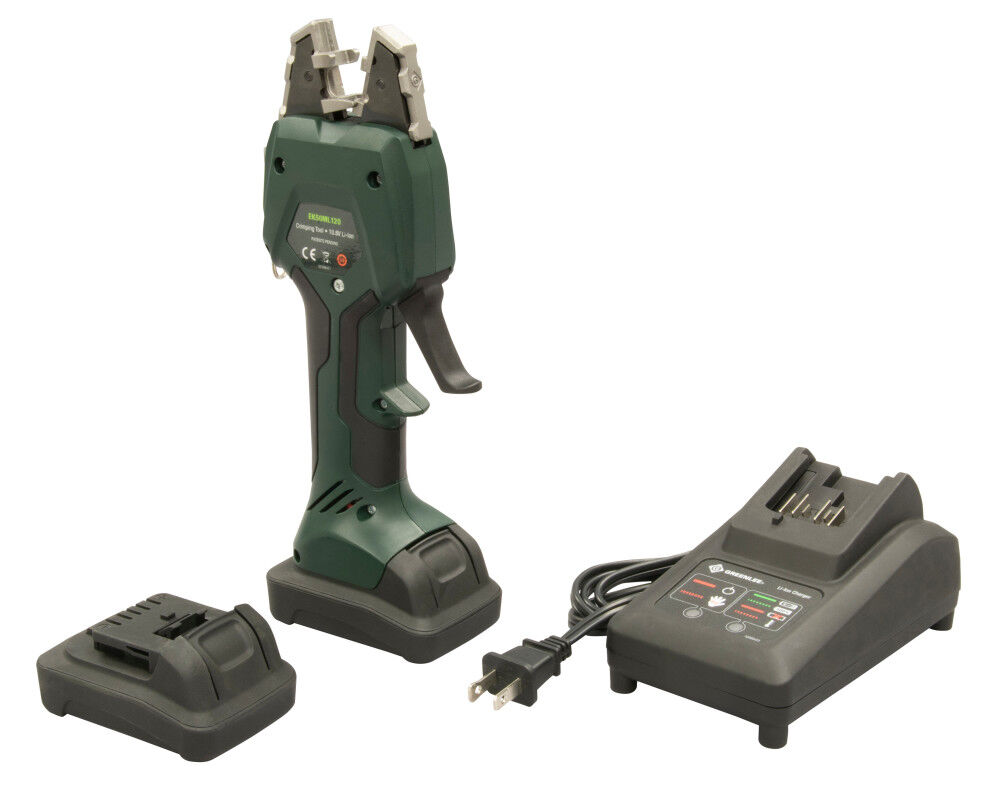

Greenlee covers this micro cutting tool with a 7-Year limited manufacturer warranty on tool mechanics and motor. The heavy-duty carrying case delivers the ES50ML cutter, two 10.8V lithium-ion batteries, 220V international battery charger, and an illustrated operations manual.
