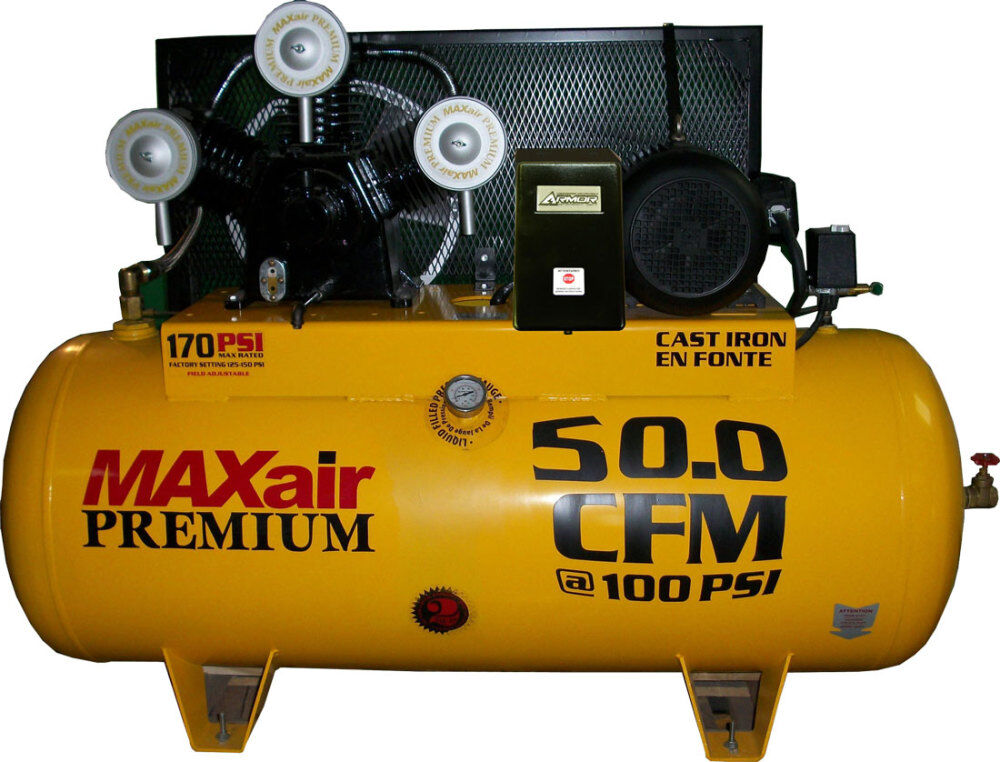

MAXair 10HP 120 Gallon Air Compressor

Description

Need massive industrial shop air? The MAXair 10HP 120-Gallon Air Compressor supplies massive compressed air volume across commercial manufacturing facilities and structural steel fabrication plants. A heavy-duty 10 HP motor powers an industrial 4-cylinder 2-stage cast-iron pump producing 35 CFM at 175 PSI across a horizontal 120-gallon ASME receiver tank. Production facilities run CNC machinery and automated sandblasters without pressure stalls. The motor draws 26 FLA at 230V 3-phase, requiring commercial disconnect switches.

Key Features of MAXair 10HP-120

Industrial manufacturing plants and structural steel foundries buy MAXair 10HP 120-Gallon Air Compressors to drive automated machinery and multi-operator air lines. Compare commercial 10 HP 3-phase air compressor pricing to upgrade plant central pneumatic systems.

• Massive 35 CFM air delivery at 175 PSI supports multi-operator industrial blast cabinets and automated production machinery cleanly.
• Solid 100-percent cast-iron 4-cylinder pump runs at a low 680 RPM, extending valve, bearing, and piston ring service lives cleanly.
• Operates on 230V 3-phase industrial power, drawing 26 FLA to optimize commercial electrical distribution efficiency cleanly.
• ASME-certified 120-gallon horizontal receiver tank provides massive pneumatic buffer storage, smoothing out heavy demand surges.
• Pre-wired NEMA-rated magnetic motor starter shields internal motor windings from phase voltage spikes and thermal overloads squarely.
• Industrial Swedish stainless steel disc valves resist heat deformation and carbonization, ensuring long maintenance intervals cleanly.

Solid ASTM Class 30 cast iron forms the heavy 4-cylinder 2-stage pump block, crankcase, and deep-finned cylinder heads, providing exceptional heat dissipation under 100-percent continuous duty. Precision-balanced automotive-style counterweighted crankshafts turn inside Timken tapered roller bearings to suppress lateral vibration. Sized for equipment pads, the stationary horizontal compressor weighs 860 lbs, measuring 74 inches long, 32 inches wide, and 56 inches high, mounting to concrete floors via structural steel saddle feet.

Three-Phase High-Volume Bench Limits

Pneumatic flowmeter bench testing proves delivered air output measures 38 CFM at 100 PSI and 35 CFM at 175 PSI, easily supporting six continuous manufacturing technicians without line pressure drops. Operating on 230V 3-phase power, the industrial motor draws a steady 26 amps under full 175-PSI cut-out head pressure. Tank fill from zero to 175 PSI cut-out takes 240 seconds, with recovery from 135-PSI cut-in to 175-PSI cut-out completing in 48 seconds. Low pump RPM holds cylinder temperatures below 175 degrees Fahrenheit.

Heavy Production Negative Selection Filter

The elevated oil sight glass allows instant daily checks of pump oil level and clarity before shift startups. Do not buy this heavy industrial 3-phase compressor for 1-phase residential workshops, mobile service trucks lacking 3-phase generators, or applications requiring oil-free breathable air lines.

• Drain accumulated water condensation from the bottom tank drain valve daily after shop shutdown.
• Inspect dual drive belts for proper tension and alignment every 500 operating hours, maintaining 1/2-inch deflection.
• Change synthetic reciprocating compressor pump lubricant every 1000 operating hours or twelve months of operation.

Factory Warranty Delivery Manifest

MAXair backs this 10 HP stationary compressor with a 2-Year limited warranty on the pump and tank, extendable to a 5-Year warranty upon using factory synthetic oil kits. The factory delivery crate includes one 120-gallon horizontal air compressor, pre-wired magnetic starter, belt guard, and technical service manual.
