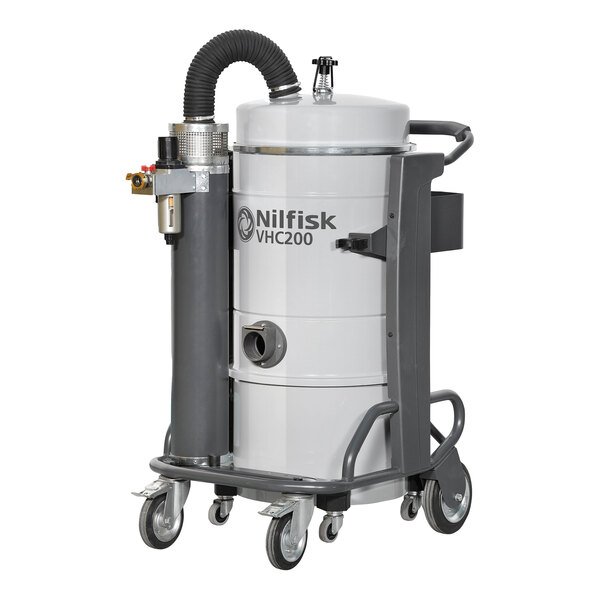

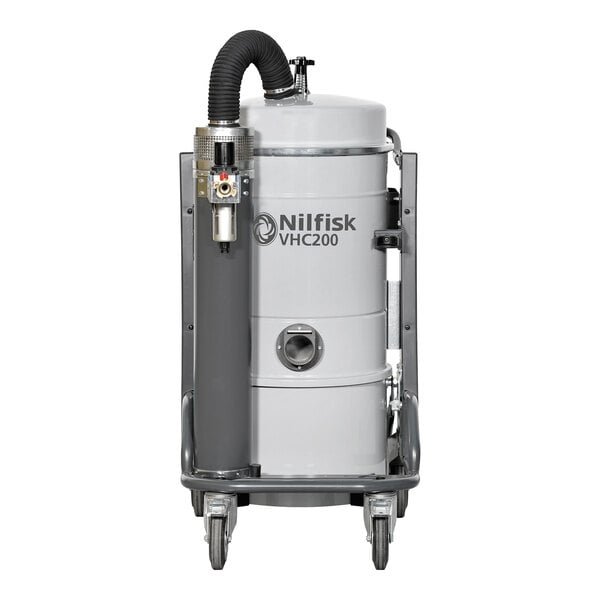

Nilfisk VHC200 SPECIAL 26 Gallon Steel Compressed Air Industrial Vacuum with HEPA Filtration – 120V

Description

Explosion-hazard zones and continuous-duty metal shops burn out electric motors within weeks of heavy operation. The Nilfisk VHC200 SPECIAL 26 Gallon Steel compressed air industrial vacuum uses a multi-venturi nozzle array and certified HEPA filtration to extract heavy debris. Operating on compressed shop air, this machine requires a massive 60 CFM plant air compressor feed to maintain peak suction.

Solid industrial steel plate forms the vacuum chamber and the 26 Gallon drop-down collection bin. The pneumatic venturi architecture eliminates electric armatures, carbon brushes, and commutators, preventing spark generation in hazardous dust atmospheres. Downstream certified HEPA filter cartridges capture toxic dusts before clean air exhausts through an integrated pneumatic muffler. Heavy toggle clamps apply continuous downward force on closed-cell neoprene gaskets, maintaining airtight chamber seals under deep venturi pull.

Pneumatic Venturi Hardware Matrix

Heavy industrial plants and shipyards deploy this compressed air vacuum for continuous recovery of blast media, steel grit, and toxic dusts. The pneumatic design has zero electrical moving parts to overheat or short out.

• Multi-stage pneumatic venturi generator produces massive static suction without electric motors
• Certified downstream HEPA filter captures 99.97% of hazardous dust particles down to 0.3 microns
• 26 Gallon drop-down steel container rolls on independent casters for fast waste disposal
• External manual filter shaker mechanism cleans the main star filter without opening the vacuum
• Integrated compressed air regulator and pressure gauge monitor incoming plant air feed
• Heavy-duty steel cart features large wheels and grounding connections for static dissipation
• Acoustic exhaust muffler suppresses venturi expansion noise to protect operator hearing

Pneumatic Venturi Bench Telemetry

The venturi array requires 60 to 90 PSI compressed air line feed to generate 180 CFM of extraction airflow. Zero electrical current draw eliminates thermal motor limits, allowing non-stop operation around the clock. Air exhaust muffler temperatures drop 5°F below ambient due to compressed air expansion cooling. Static water lift registers 130-inch water lift across a 20-foot conductive hose. Noise meters register 73 dBA at 10 feet under full compressed air feed.

Compressed Air Operational Limits

The heavy steel cart rolls across factory floors with solid balance, but dragging long compressed air feed lines limits travel radius. Operations with small portable air compressors must avoid this vacuum, because air feeds below 50 CFM cause immediate suction failure. Sucking smoldering coals or burning furnace ash will burn through the star filter and destroy the downstream HEPA cartridge.

• Check incoming compressed air pressure to ensure a steady minimum feed of 75 PSI
• Shake the manual filter handle ten times before releasing the drop-down waste bin
• Drain inline pneumatic moisture separators once per shift to prevent water from reaching the venturi

Factory Warranty Equipment Manifest

Nilfisk backs this pneumatic machine with a 2-Year industrial warranty covering the venturi block, chassis, and HEPA filter seals. Unboxing delivers the VHC200 venturi powerhead, 26 Gallon steel drop bin, star filter, certified HEPA filter, pneumatic regulator, and heavy steel transport cart.
