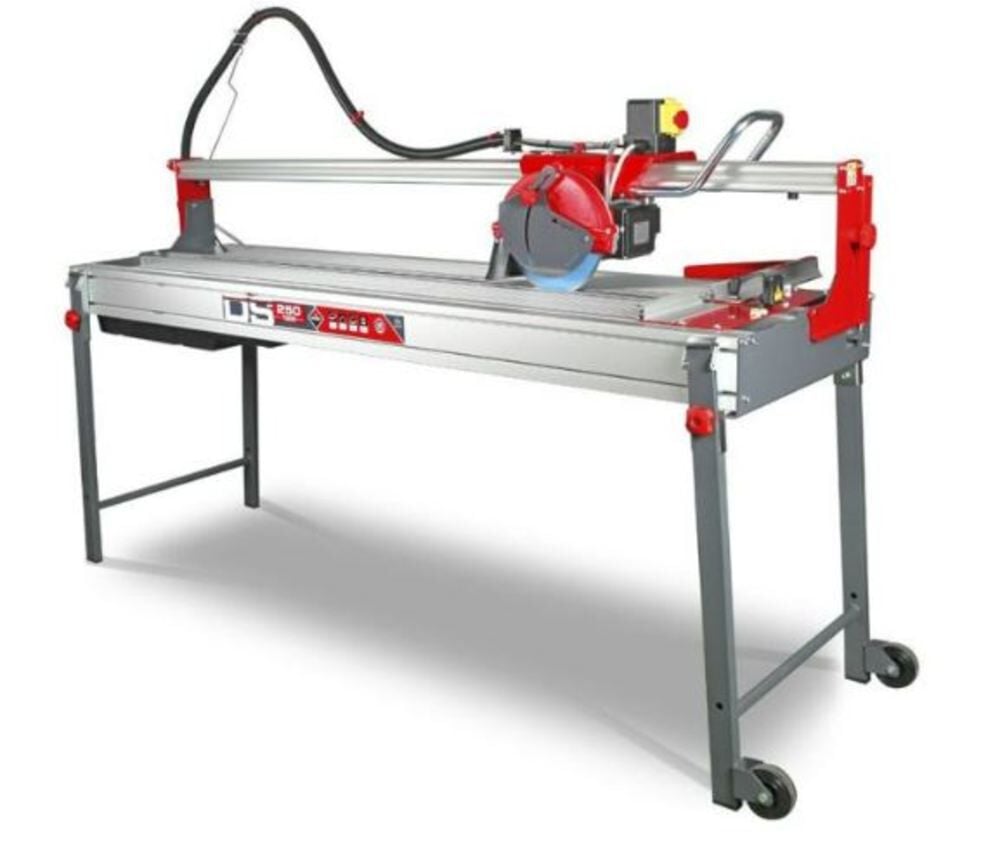

Rubi Tools 10 in. Tile Saw DS 60in

Description

Underpowered tile saws deflect and chip delicate porcelain tiles when plunging long cuts across large format floor panels. The Rubi Tools 10 in. Tile saw DS 60in delivers rigid plunge-cutting precision across tiles up to sixty inches long. This three-horsepower commercial machine features a plunging motor head riding on an extended aluminum rail. Forcing tiles into the blade too fast chips delicate glazed surfaces.

An industrial induction motor wet-end powers a direct-drive arbor shaft supported by double-sealed precision ball bearings. The motor carriage travels on heavy-duty ground steel guide bearings riding inside an extruded aluminum beam to eliminate carriage flex. The table chassis is fabricated from welded structural steel, powder-coated to resist abrasive water slurry corrosion. Sintered bronze guide bushings support the plunge pivot arm to maintain blade squareness across repetitive plunges.

Rail Tile Saw Hardware Matrix

A plunging motor head allows plunge cuts for electrical outlet openings and air conditioning registers in floor tiles. The high-volume water pump feeds dual water nozzles to cool the diamond rim and suppress silica dust clouds.

• Three-horsepower commercial motor delivers uninterrupted rotational power through dense porcelain slabs
• Ten-inch diamond blade capacity cuts stone and porcelain tiles up to two inches thick in single passes
• Sixty-inch straight ripping length processes massive porcelain panels without requiring secondary cuts

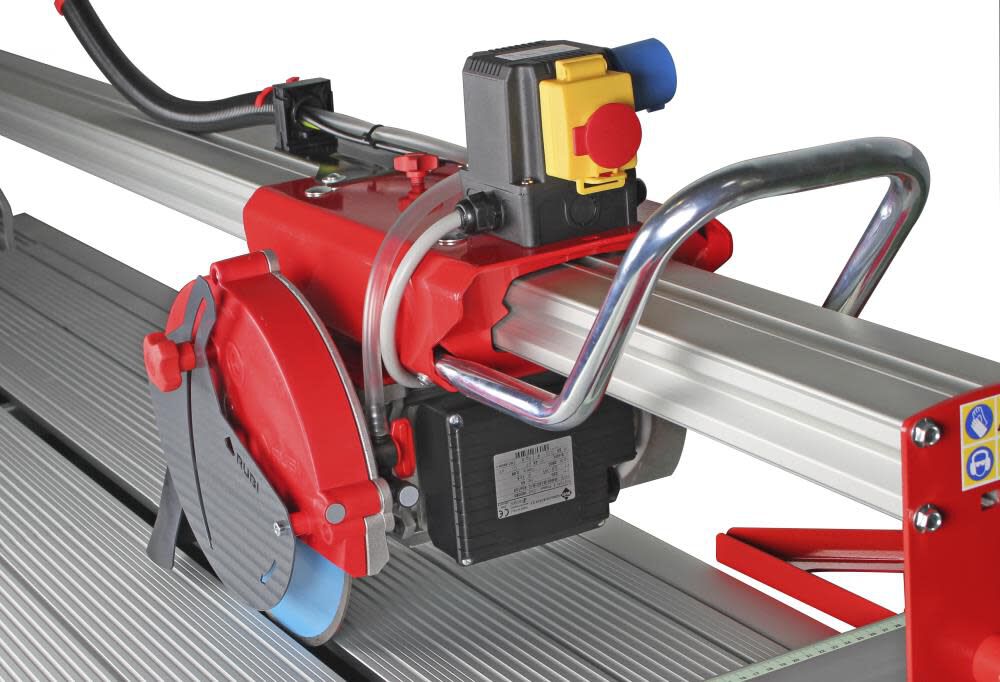

• Plunging motor head adjusts vertically to perform internal cutouts and grooving passes on stone surfaces
• Recirculating water pump supplies cooling water directly to both sides of the diamond blade rim
• Heavy-duty folding leg stand features integrated transport wheels for one-person commercial jobsite mobility
• Adjustable angle fence guides tile stock for accurate forty-five-degree diagonal and miter cuts

Wet Tile Saw Bench Telemetry

Testing records free-spindle velocity at 3,450 RPM, maintaining 3,100 RPM under a full-length plunge cut in dense porcelain tile. Dynamic pneumatic saw comparison matches a heavy wet air saw consuming 32.0 CFM at 90 PSI dynamic line flow. Acoustic monitoring captures 82 dBA at operator ear level during continuous stone cutting passes. Motor casing temperatures rise twenty-four degrees Fahrenheit above ambient across one hour of steady tile fabrication. Spindle drive torque generates 5.2 foot-pounds of continuous rotational resistance.

Fleet Service Practical Directives

Never run this diamond tile saw dry without continuous clean water flow to the cutting head. Operating dry overheats the diamond blade rim, melting brazed diamond segments and releasing deadly silica dust clouds. Pushing tiles through with uncleaned slurry buildup on table rollers causes tiles to bind, fracturing porcelain.

• Drain and flush the water tray to remove abrasive ceramic slurry deposits after every working shift.
• Clean slurry residue off the aluminum guide rail bearings using fresh water and nylon brushes daily.
• Inspect the diamond blade core for warpage or tension loss before starting critical large-format cuts.

Commercial Warranty Carton Checklist

Rubi Tools backs this industrial rail tile saw with a 2-Year commercial warranty covering manufacturing and material defects. The freight shipment contains one DS 60in tile saw, folding leg stand, ten-inch diamond blade, water pump, guide fence, and manual.
