Reelcraft 3/8 in. x 50 ft. REELSAFE Hose Reel

Description

Controlled spring retraction speeds define the Reelcraft RS7650-OLP REELSAFE Hose Reel, preventing destructive hose whip accidents inside crowded shops. An internal centrifugal brake regulates rewind speed across 50ft of 3/8in ID low-pressure hose rated to 300 PSI. Braking resistance increases line pull resistance slightly during manual hose deployment.

Solid structural steel forms the single pedestal arm, bolted to a 6-1/2in by 9in base plate to produce a bare tool weight of 43 lbs. A full-flow aluminum swivel incorporates nitrile O-ring seals rated for 300 PSI fluid transfer across temperatures from minus 20°F to 210°F. The internal centrifugal brake mechanism contains hardened steel flyweights and friction linings.

Key Features of Reelcraft RS7650-OLP

Industrial manufacturing plants and fleet repair garages buy Reelcraft RS7650-OLP reels to satisfy strict workplace safety mandates. Safety directors specify this REELSAFE model to prevent whipping hose ends from striking personnel or expensive parked vehicles.

• Patented REELSAFE centrifugal braking system controls retraction speed to eliminate violent hose whip hazards.
• Single pedestal steel frame features stamped structural ribs to resist arm deflection under side loading.
• Full-flow aluminum swivel design minimizes internal fluid turbulence to maintain maximum terminal pressure.
• Containerized steel drive spring safely holds high winding energy during shop bench maintenance procedures.
• Multi-position guide arm adjusts to seven distinct positions for wall, ceiling, floor, or truck setups.
• Multi-position ratchet latch mechanism locks line length, eliminating unwanted spring tension during tool use.
• Four-way non-snag roller guide protects rubber line jackets from severe edge friction and scuffing.

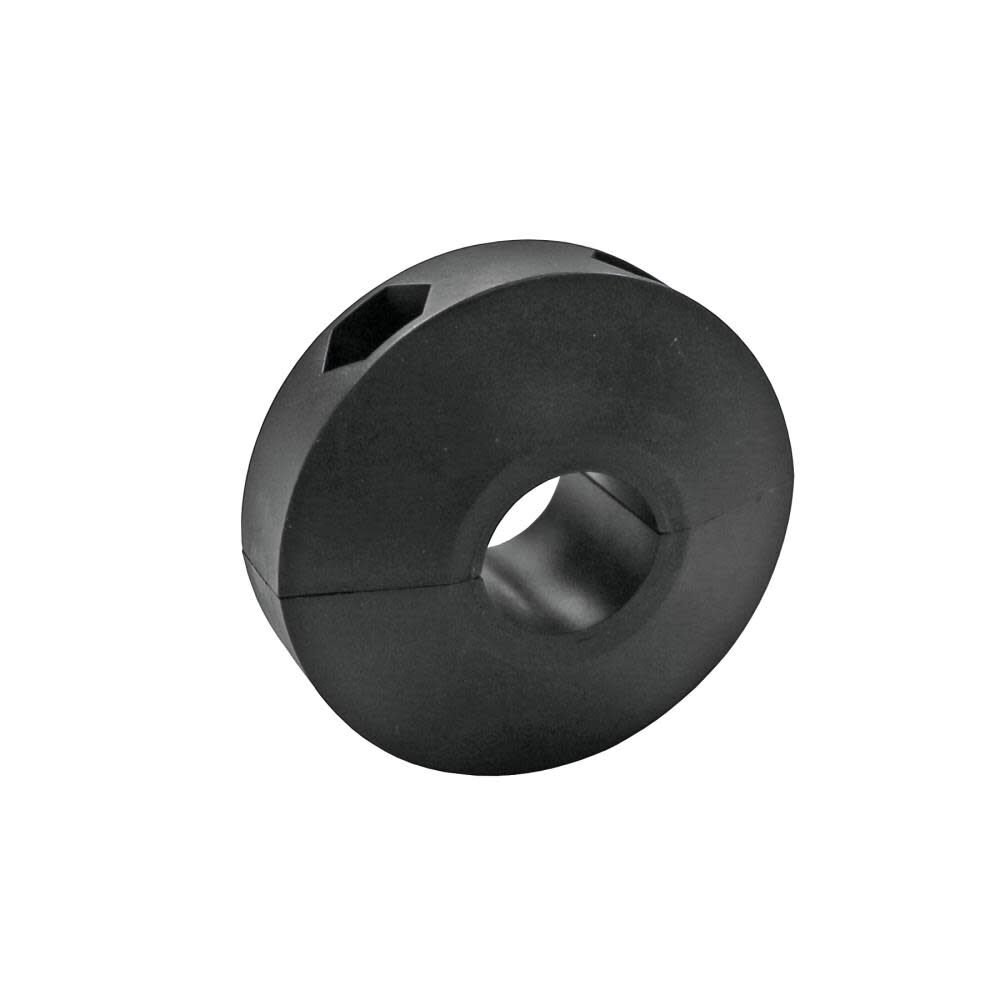

• Adjustable solid rubber stop bumper sets convenient terminal hose drop height below ceiling trusses.

Centrifugal Braking Dynamic Retraction Testing

Deceleration bench testing confirms steady retraction speeds between 2 and 3 FPS, cutting whip impact force by eighty percent. Static hydro testing holds 300 PSI water pressure with zero swivel seal weeping. Line payout requires 8 lbs initial pull, increasing to 18 lbs at full 50ft extension. Controlled spring rewind noise measures 62 dB.

Workplace Safety Usability Negative Filter

Do not install this unit on hydraulic lines or high-pressure wash systems exceeding 300 PSI. Do not lubricate the dry centrifugal brake shoes with oil or solvent. Technicians wearing wet work gloves easily grip the large rubber bumper stop during payout.

• Wipe down hose guide rollers with a clean dry cloth every 50 operating hours.
• Inspect the outer rubber hose cover for deep abrasions or chemical soft spots every 30 days.
• Check frame mounting hardware to confirm 45 ft-lbs torque tightness every 6 months.

Verified US Warranty Crate Package

Reelcraft covers the REELSAFE reel with a 2-Year limited warranty on structural parts, fluid swivels, and brake mechanisms. The factory crate includes the RS7650-OLP reel, 50ft 3/8in ID low-pressure hose, rubber ball stop, and technical manual.
