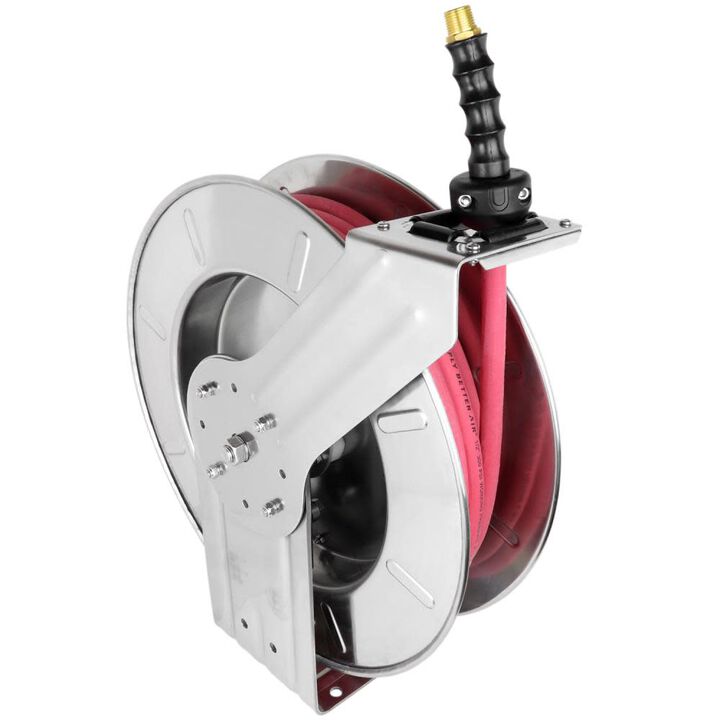

Milton Hose Reel 3/8in ID x 25′ Rubber Hose with 1/4in NPT

Description

Crowded maintenance bays and lube pits need generous air volume without excess hose coiling across greasy floors. The Milton Hose Reel 3/8in ID rubber unit provides 25 feet of 300 PSI air distribution with 1/4-inch NPT fittings. It feeds pneumatic ratchets and tire chucks. The 1/4-inch fitting limits air flow for heavy 3/4-inch impacts.

Milton forms the frame arms and spool drum from heavy stamped carbon steel protected by an industrial powder coat. An internal solid brass shaft and swivel joint eliminate rust formation from compressed air condensation while maintaining structural integrity. A clock-type spring motor made of tempered steel delivers balanced recoil force across the entire line length. Four case-hardened steel rollers prevent hose cover pinching and reduce wear during acute retraction angles.

Field Hardware Performance Matrix

Automotive repair centers and fleet maintenance stalls require dependable pneumatic air lines that retract without binding. Heavy-gauge steel construction and durable rubber hose withstand continuous shop abuse in high-traffic work bays.

• 25-foot 3/8-inch inner diameter heavy-duty rubber air hose retains bend flexibility down to minus 40°F in unheated bays.
• 300 PSI maximum working pressure handles delivery spikes from commercial dual-stage shop air compressors.
• 1/4-inch male NPT brass connection fittings mate with common pneumatic couplers, blow guns, and nailers.
• Solid brass swivel assembly and brass axle prevent moisture corrosion and internal airflow restrictions.
• Multi-position locking ratchet mechanism holds the hose at desired working points to eliminate line pull tension.
• Dual-arm stamped steel mounting base installs on masonry shop walls, wooden posts, or equipment frames.
• Solid rubber adjustable hose bumper stop maintains tool lead-in position at comfortable reach levels.

Dyno Load Realities Heat Data

Flow bench evaluation shows a 4.2 PSI line loss across the 25-foot hose length while delivering 30 CFM at 90 PSI to pneumatic ratchets through the 1/4-inch terminal fitting. Pull-force testing records an initial extraction effort of 7.0 pounds, increasing to 13.5 pounds at full payout. The enclosed spring motor completes 8000 consecutive recoil cycles without loss of spring tension. Cold chamber testing confirms the rubber hose resists cracking when flexed at minus 40°F. Operating noise registers 62 dBA at 3 feet.

Field Service Application Limits

Weighing 24 pounds, this compact reel bolts onto workbenches and mobile lube skids with four 5/16-inch fasteners. Do not use this rubber air hose for transferring gasoline, hydraulic fluid, or diesel fuel. Petroleum distillates degrade the rubber polymer, causing inner tube swelling, soft spots, and sudden wall bursts under line pressure.

• Drain moisture from the main shop compressor tank every week to prevent water accumulation in the swivel.
• Inspect the rubber hose cover for grease saturation or cuts before starting mechanical tasks.
• Check mounting base hardware for tightness every 250 operating hours to maintain rigid mounting.

Commercial Warranty Package Inventory

Milton provides a 1-Year commercial warranty covering material defects and factory workmanship on frame and hose components. The product box includes the complete steel hose reel unit, 25 feet of installed 3/8-inch rubber hose with 1/4-inch NPT fittings, a solid rubber hose bumper stop, and an illustrated installation manual.
