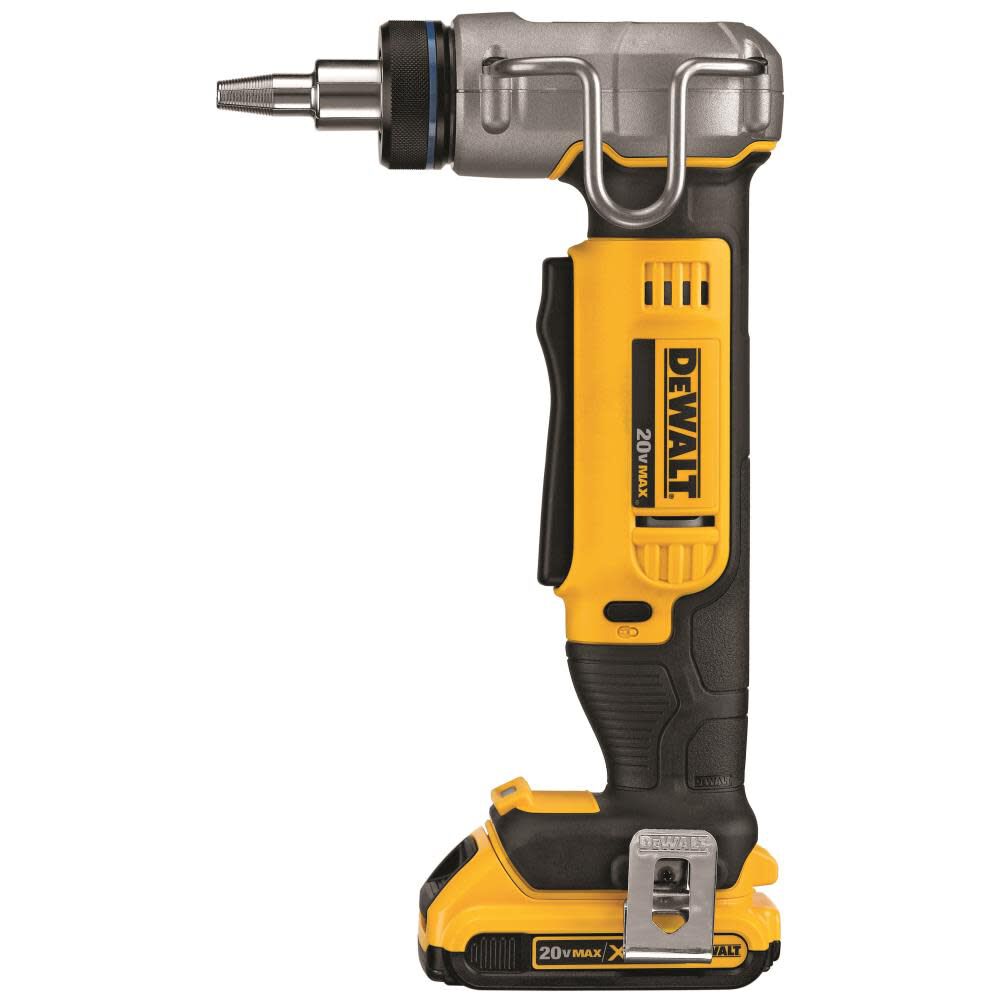

DEWALT 20V MAX XR 1-in PEX Expander Tool Kit

Description

Plumbing rough-in crews require fast pipe expansions without the fatigue of manual hand pump tools. The DEWALT 20V MAX XR 1-in PEX expander tool kit expands flexible PEX-A pipe using cordless battery power. This compact tool runs water supply lines through tight equipment sheds and landscape shop bathrooms. It cannot expand rigid copper, steel, or non-memory PEX-B pipe.

A durable brushless electric motor pairs with an all-metal planetary gear mechanism and hardened steel drive cone. The automatic rotating head feature turns the expansion dies slightly on each cycle, preventing internal pipe grooving and guaranteeing watertight socket seals. A high-strength magnesium gear housing shields internal drives from jobsite drops onto concrete floors. Rubberized overmold grips absorb tool vibration during repetitive overhead plumbing installations.

Cordless PEX Expander Hardware Specifications

Commercial plumbing contractors and landscape irrigation specialists depend on cordless PEX-A expansion tools to install leak-proof pipe joints fast. This tool cuts rough-in installation times on commercial plumbing projects.

• Brushless motor technology delivers continuous expansion force without brush wear
• Automatic rotating head mechanism prevents inner tube wall scoring for leak-proof seals
• PEX-A expansion capacity covers 3/8-inch, 1/2-inch, 3/4-inch, and 1-inch pipe diameters
• Integrated LED work light illuminates dark utility trenches and cabinet plumbing chases
• All-metal planetary gears withstand continuous commercial jobsite cycling
• Dual 2.0 Ah lithium-ion battery packs power hundreds of pipe expansions per shift
• Full-length steel hang hook secures the tool to framing studs between operations

Bench Cycle Speed Thermal Telemetry

Cycle testing on 1-inch PEX-A tubing records an expansion speed of 9.2 seconds per cycle at 72 degrees Fahrenheit. The brushless motor and battery pack deliver 240 complete expansions on 3/4-inch pipe on a single charge. Sound meter testing records 75 dBA at three feet during tool cycling. Gear housing temperature rise stabilizes at 24 degrees Fahrenheit above ambient conditions after sixty continuous pipe expansions.

Piping Installation Realities Usability Boundaries

Slip the expansion ring over clean PEX-A pipe, place the expander head inside the tube, and hold the trigger until the dies open completely. Release the switch and insert the brass fitting before the plastic contracts. Do not force the expansion dies into cold, unconditioned pipe.

• Expander drive cone requires thin grease application every one hundred expansion cycles
• Die segment faces require cleaning with mineral spirits to remove plastic debris
• Battery dock terminals demand compressed air blowouts every forty operating hours

Commercial Tool Warranty Crate Manifest

DEWALT backs this DCE400D2 PEX expander kit with a 3-Year commercial limited warranty. The heavy kit box contains the 20V MAX PEX expander, 1/2-inch head, 3/4-inch head, 1-inch head, two 2.0 Ah batteries, charger, cone grease, and carrying case.
