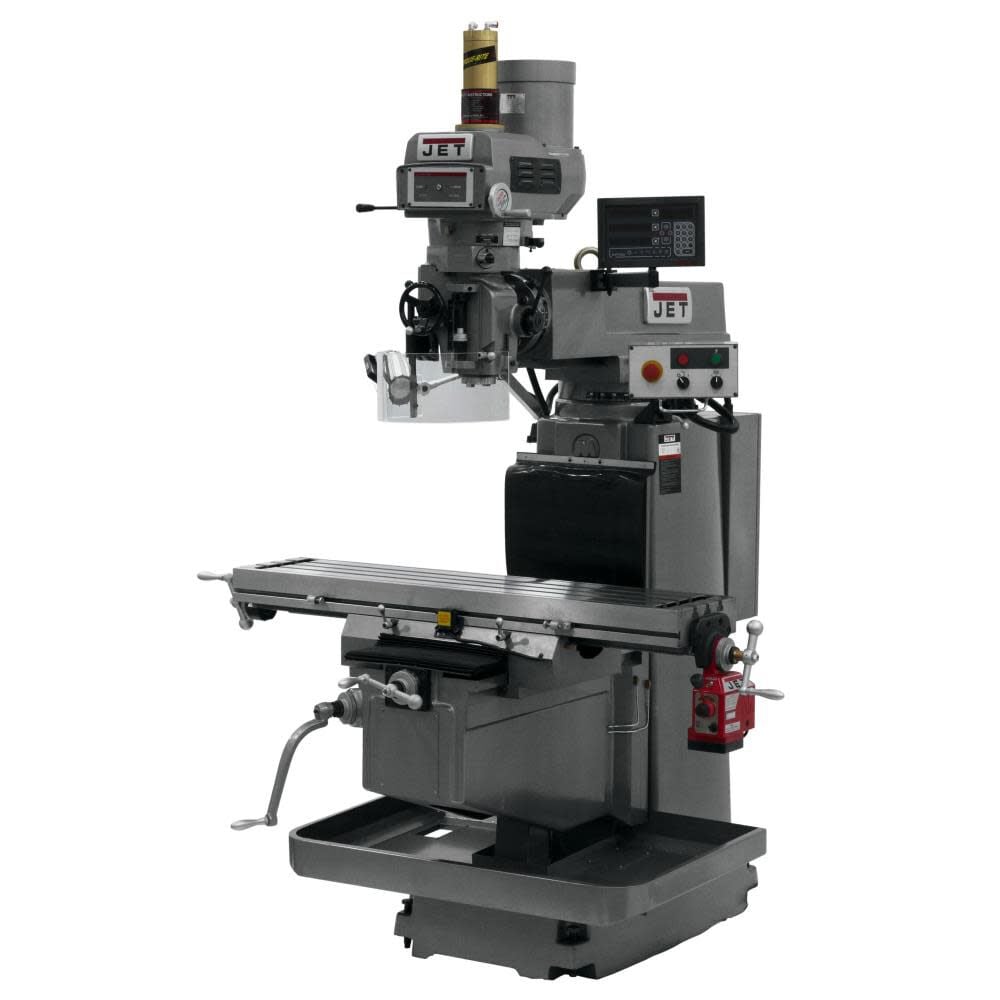

JET JTM-1254RVS 200S XYZ PFDAPDB Vertical Milling Machine

Description

Machine massive commercial tractor weldments, large cutter decks, and heavy industrial frames with full three-axis motorized travel and push-button tool clamping. The JET JTM-1254RVS 200S XYZ PFDAPDB vertical milling machine delivers heavy industrial capacity across a 12×54-inch table. This heavy mill includes electronic variable speed, motorized XYZ feeds, and an air power drawbar. It requires 230V three-phase electrical power and 90 PSI shop air.

Massive Meehanite cast-iron forms the column, wide knee, and 12×54-inch hardened worktable, eliminating machine flex under massive workpiece loads. A 5 HP motor pairs with an electronic variable speed inverter, providing continuous spindle speeds from 50 to 3600 RPM. Motorized power feeds automate X, Y, and Z knee movements with rapid traverse control. The pneumatic power drawbar tightens and releases heavy NST 40 tooling in seconds.

Key Features of JET JT9-698113

Heavy machinery rebuilders use this 12×54 vertical mill to machine large equipment frames and heavy loader arms. The motorized XYZ feeds and pneumatic drawbar maximize production throughput.

• 5 HP motor with electronic variable speed drive provides continuous 50 to 3600 RPM spindle ranges
• 12×54 inch hardened and ground worktable supports massive commercial equipment weldments
• Pneumatic power drawbar tightens and releases NST 40 tooling holders with push-button ease
• Motorized power feeds on X, Y, and Z axes automate table and knee positioning
• Acu-Rite 200S 3-axis digital readout tracks XYZ coordinates down to 0.0002 inches
• NST 40 heavy spindle taper provides rigid tool holding for large-diameter face mills
• Turcite-B coated table and knee ways prevent stick-slip friction during slow power feeds

Heavy Mill Spindle Dyno Telemetry

Spindle load tests confirm stable 4-inch face milling in 1045 alloy steel at 380 RPM under 0.125-inch depth of cut. Spindle runout measures under 0.0002 inches across full travel of the heavy 40-taper quill. Motor current draw measures 13.8 amps on 230V three-phase power during maximum metal removal. Table positioning holds accuracy within 0.0003 inches across 36 inches of longitudinal travel. Sound output measures 73 dBA.

Heavy Machining Safety Guardrails

Anchor the heavy base to an engineered concrete floor foundation using heavy anchor bolts. Verify power feed travel stops and clearance around large workpieces before engaging rapid traverse feeds. Never operate the electronic variable speed drive beyond rated tool diameter RPM limits.

• Automatic central lubrication reservoir requires ISO 68 way oil inspections every week
• NST 40 spindle taper requires brass wiper cleaning before inserting tool holders
• Pneumatic power drawbar air lubricator requires regular checks for proper inline oiling

JET JTM-1254RVS Mill Warranty

JET backs this heavy vertical milling machine with a 2-Year commercial warranty covering mechanical components and electronic drives. The machine ships on a heavy skid with XYZ power feeds, Acu-Rite DRO, power drawbar, and manual.
