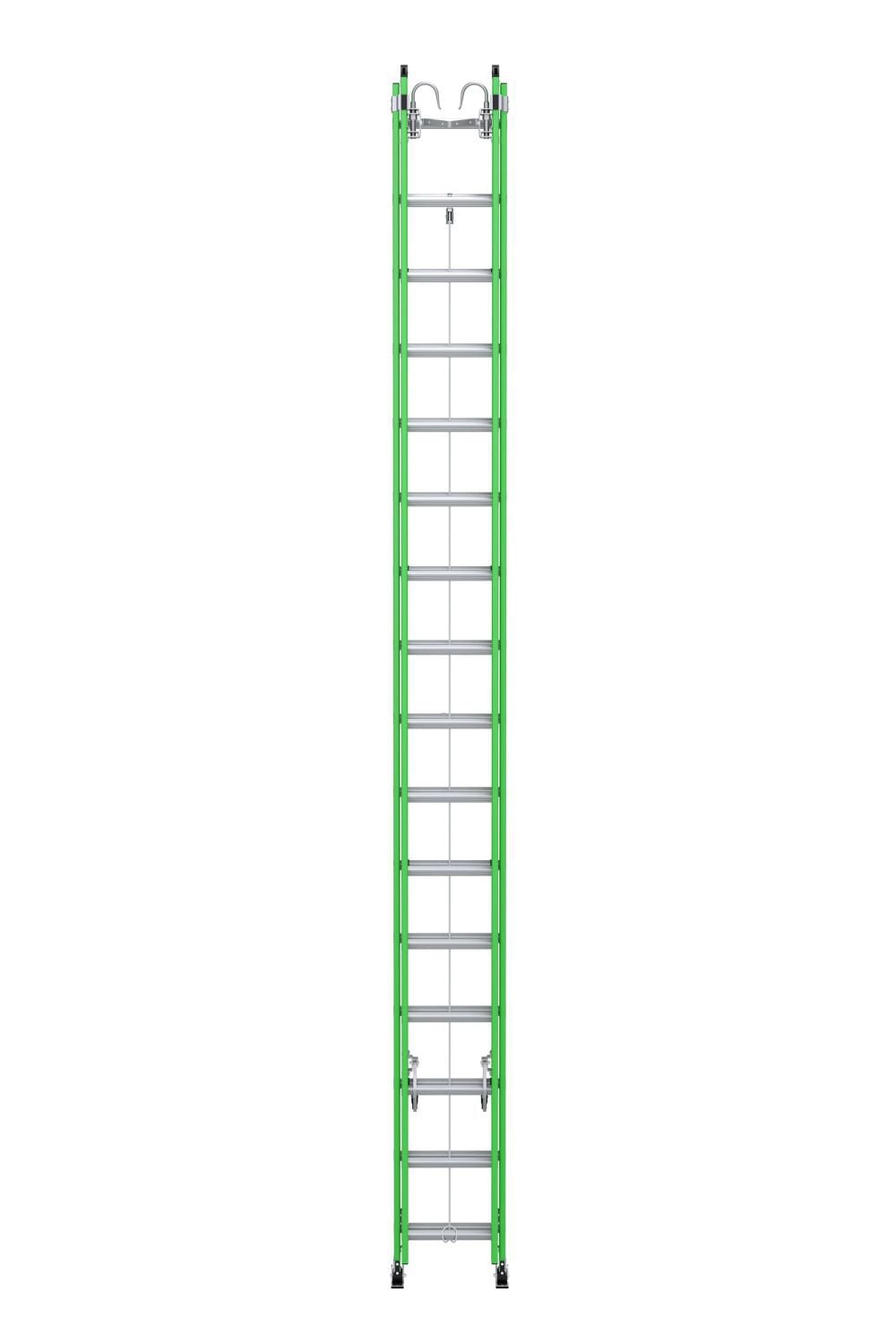

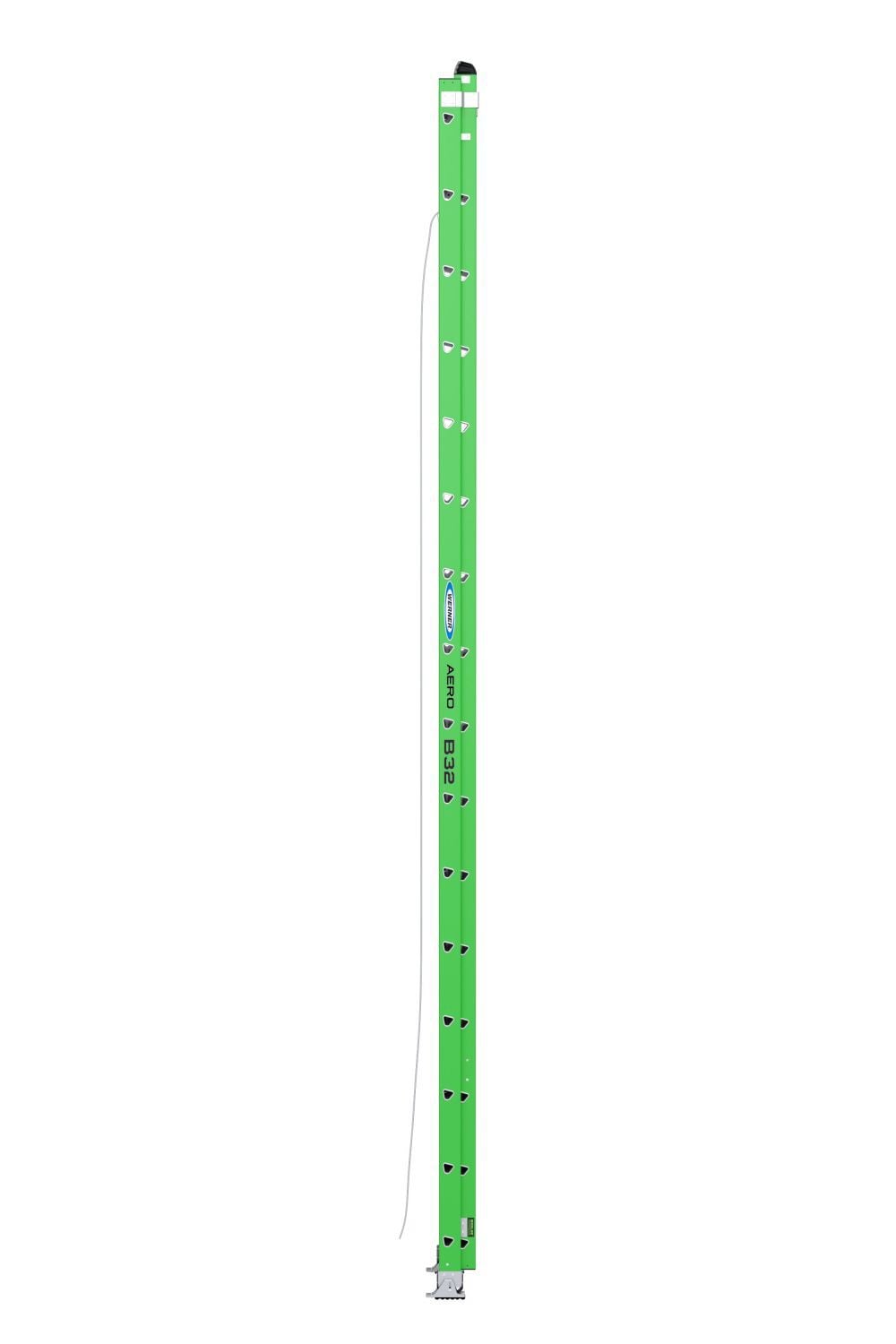

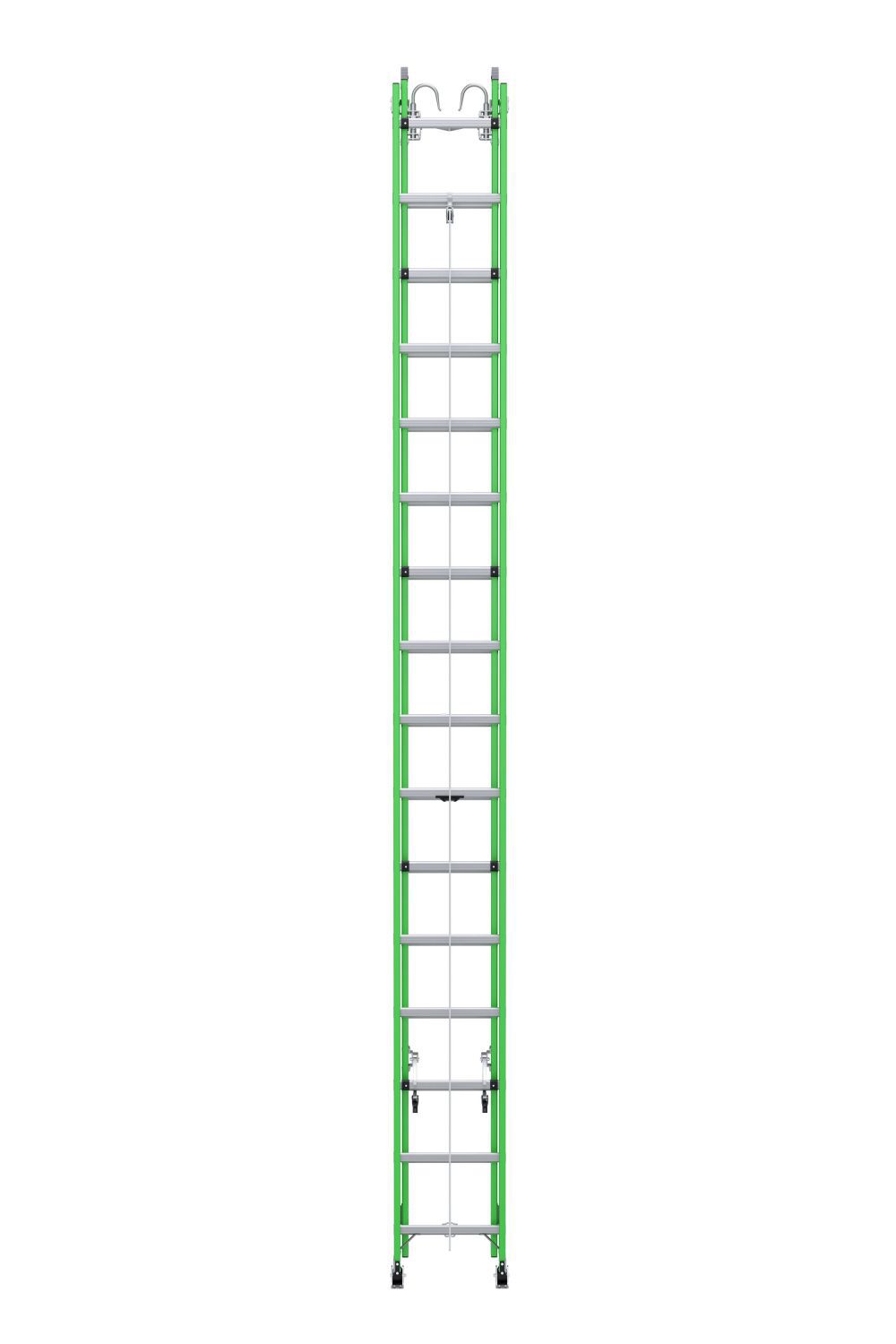

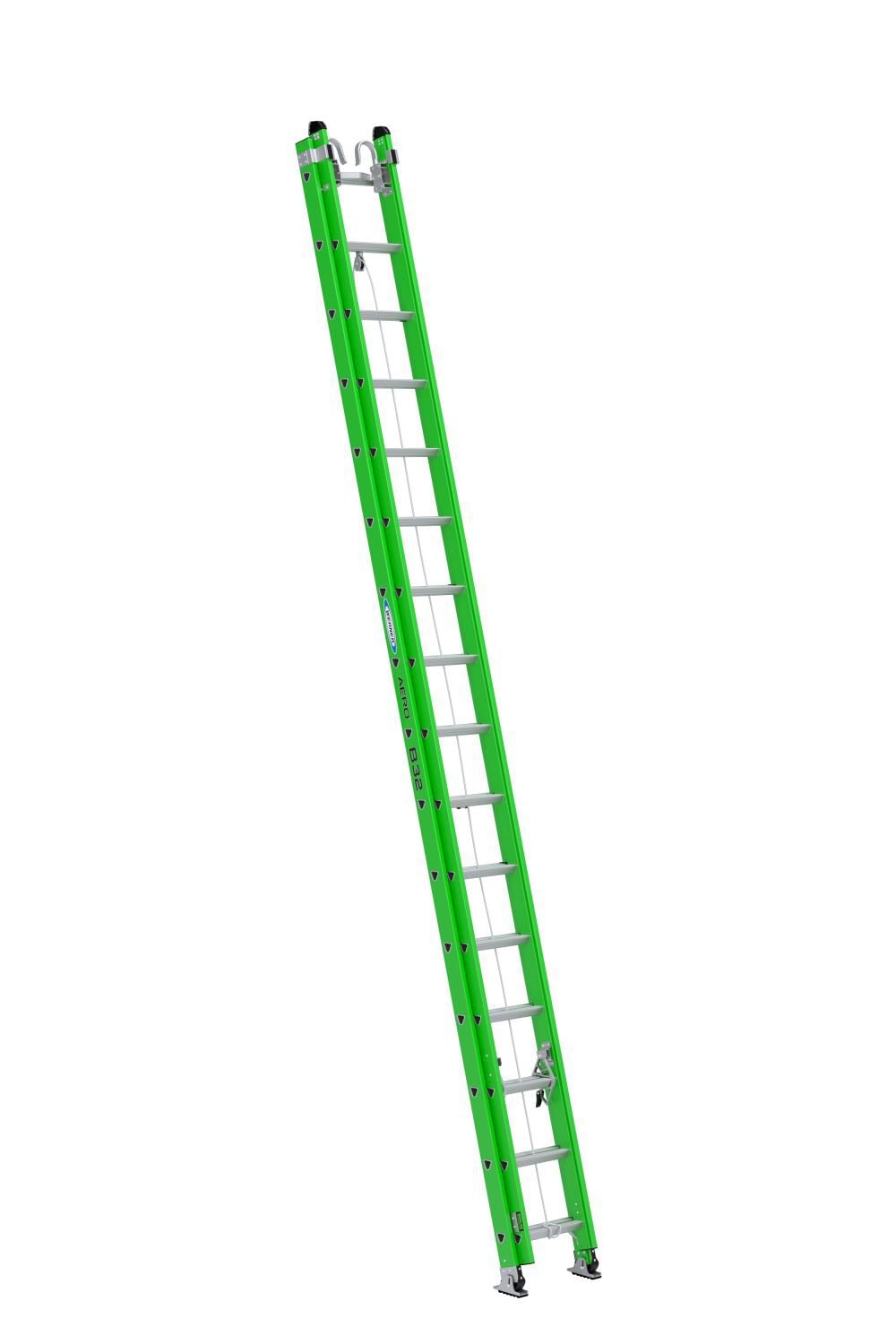

Werner AERO Extension Ladder 32′ IAA FG Box Rail/Tri Rung Cable Hook V Rung

Description

High-voltage line repairs and unpredictable wind gusts threaten lineman stability on standard extension ladders. The Werner AERO Extension Ladder 32′ features non-conductive fiberglass box rails and a 375-pound capacity. You climb utility poles with rigid confidence. However, this specialized 32-foot extension ladder cannot act as a self-supporting step ladder.

Werner builds this utility extension ladder with heavy-duty non-conductive fiberglass box-style side rails and slip-resistant aluminum Tri-Rungs. The box rail geometry resists lateral twisting under heavy worker loads. The top section incorporates a factory-installed V-rung and cable hooks to grab round poles and steel strands. Heavy-duty extruded aluminum locks secure the fly section. Dual-action feet ensure secure placement on hard concrete or penetrable soil.

Key Features of Werner AERO

Equip your commercial utility crews with this rigid box-rail extension ladder to handle high-voltage electrical drops. Direct wholesale pricing ensures contractors maintain OSHA-compliant climbing gear.

• A 375-pound Type IAA duty rating supports heavy workers carrying tool belts.
• Non-conductive fiberglass box rails protect electricians from high-voltage shock hazards.
• Box rail geometry eliminates lateral twisting and side rail deflection during ascent.
• Factory-installed V-rung and cable hooks grab utility poles and steel strands.
• Slip-resistant aluminum Tri-Rungs provide comfortable standing surfaces during long shifts.

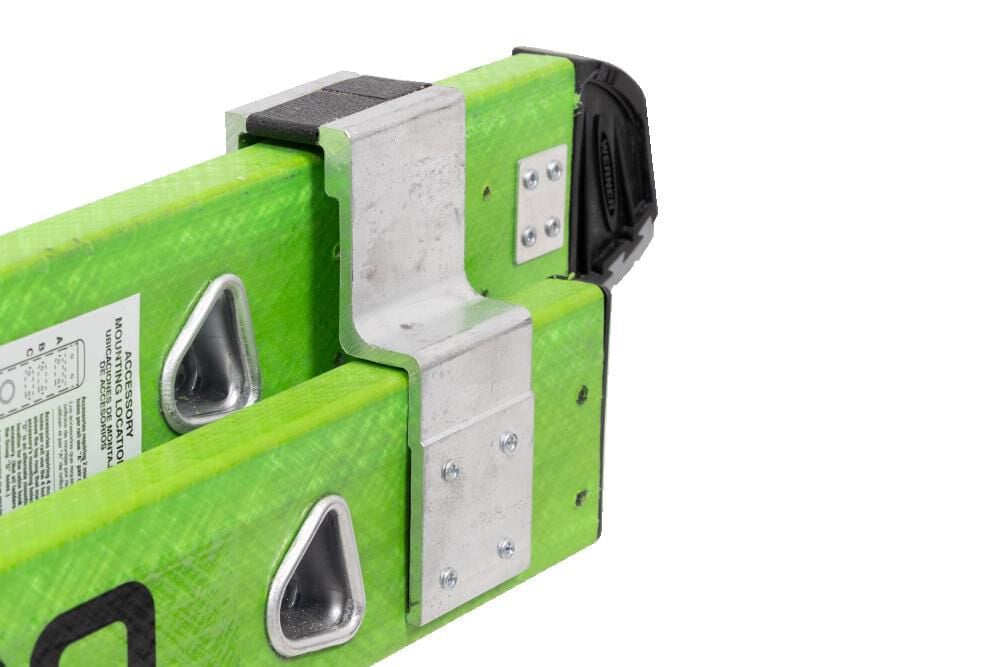

• Heavy-duty extruded aluminum locks secure the fly section without slipping.
• Dual-action feet pivot for flat concrete or dig into soft dirt.

Dynamometer Bench Testing Load Telemetry

Load testing confirms the structural fiberglass box rails and aluminum Tri-Rungs withstand 375 lbs of static downward pressure without deflection or lock failure. Electrical insulation telemetry verifies zero current transfer across the fiberglass rails at 25000 volts. The box rail design reduces lateral twist by 40 percent compared to standard channel rails under 500 lbs of dynamic lateral force. The V-rung and cable hooks hold firm against utility poles under lateral load.

Field Operation Usability Maintenance Directives

Workers position the ladder against the utility pole, engaging the V-rung or hooking the cable hooks over overhead strands. The rope and pulley system hoists the fly section into place. Do not overextend the ladder past the safety stops, climb above the top three rungs, or use on ice.

• Inspect fiberglass side rails for cracks or delamination before each work shift.
• Check aluminum rung locks and pulley ropes for wear every 30 days.
• Wipe grease and mud off the V-rung and cable hooks after each use.

Commercial Warranty Terms Crate Manifest

Werner backs this fiberglass extension ladder with a 1-Year commercial manufacturer warranty against structural defects. The freight shipment delivers one complete B7132-2X9085 32-foot Type IAA fiberglass extension ladder, pre-installed V-rung, cable hooks, rope and pulley system, safety warning labels, and official manufacturer user instruction documentation manuals.
