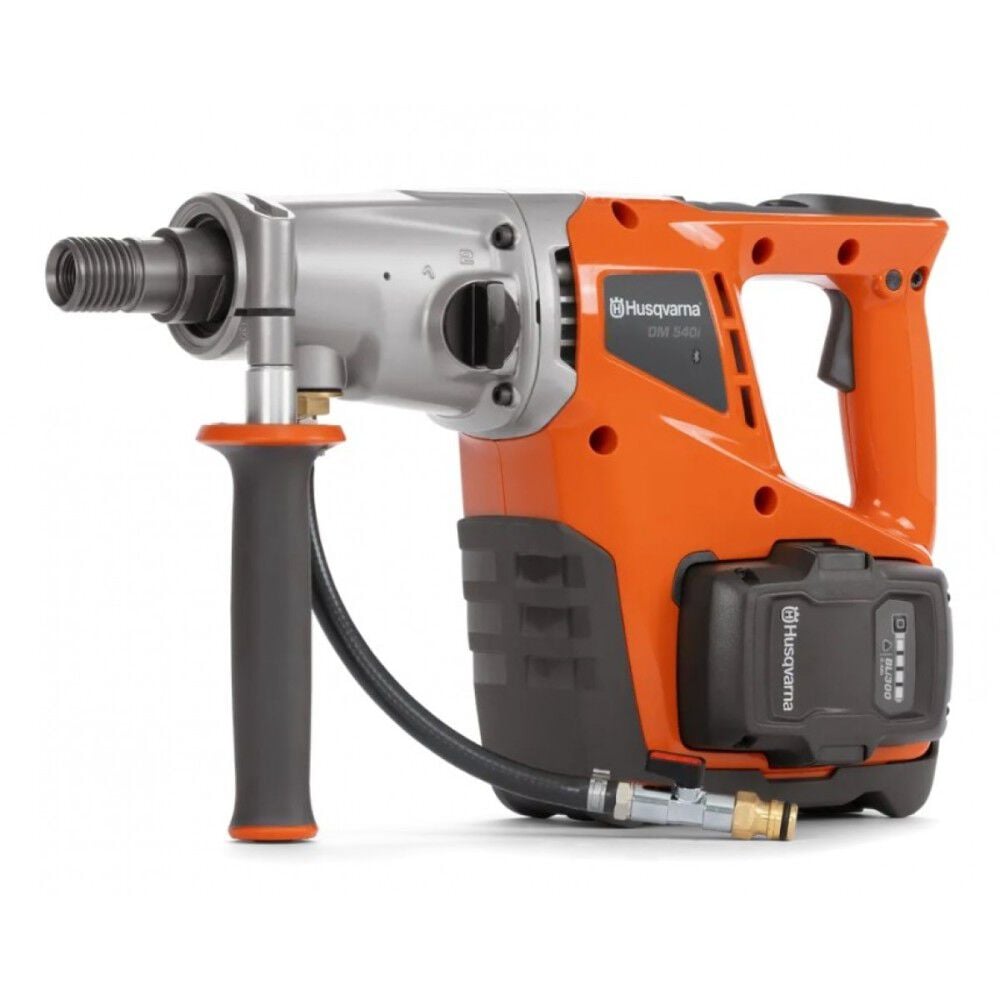

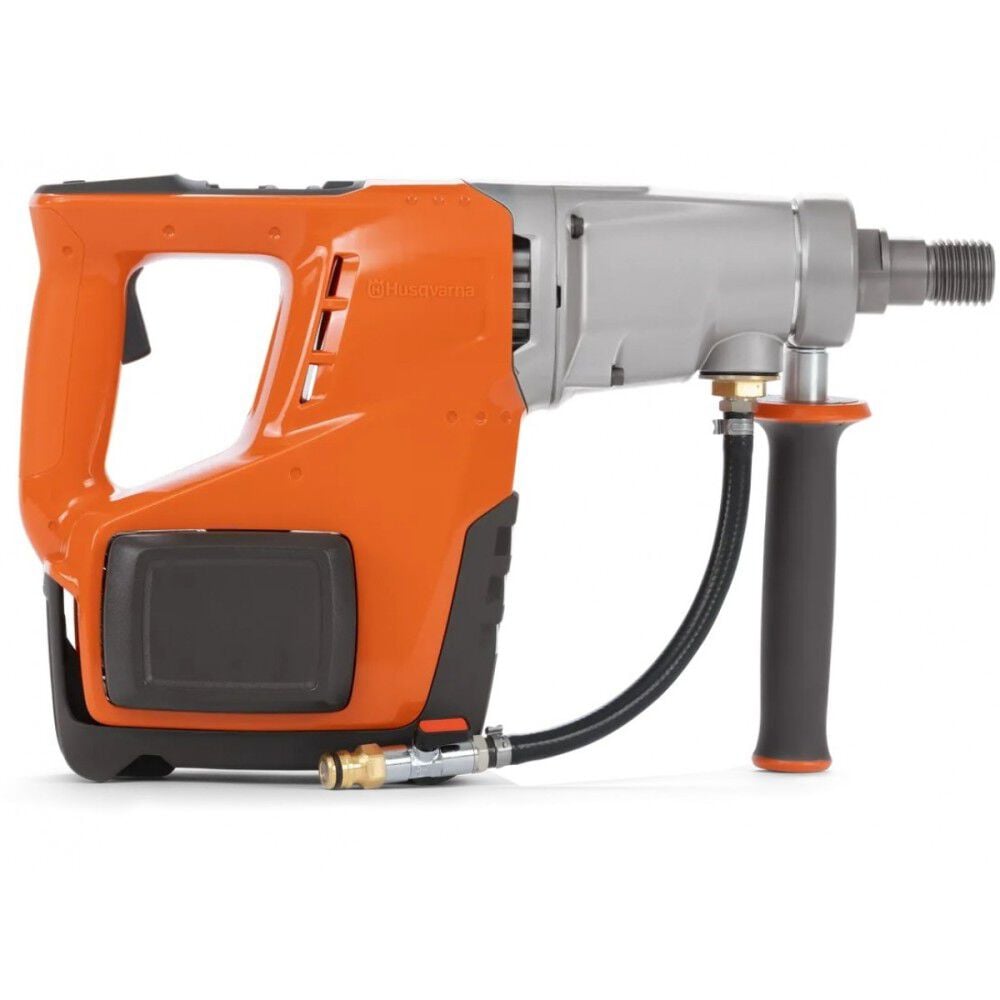

Husqvarna Construction DM 540i Battery Powered Core Drill (Bare Tool)

Description

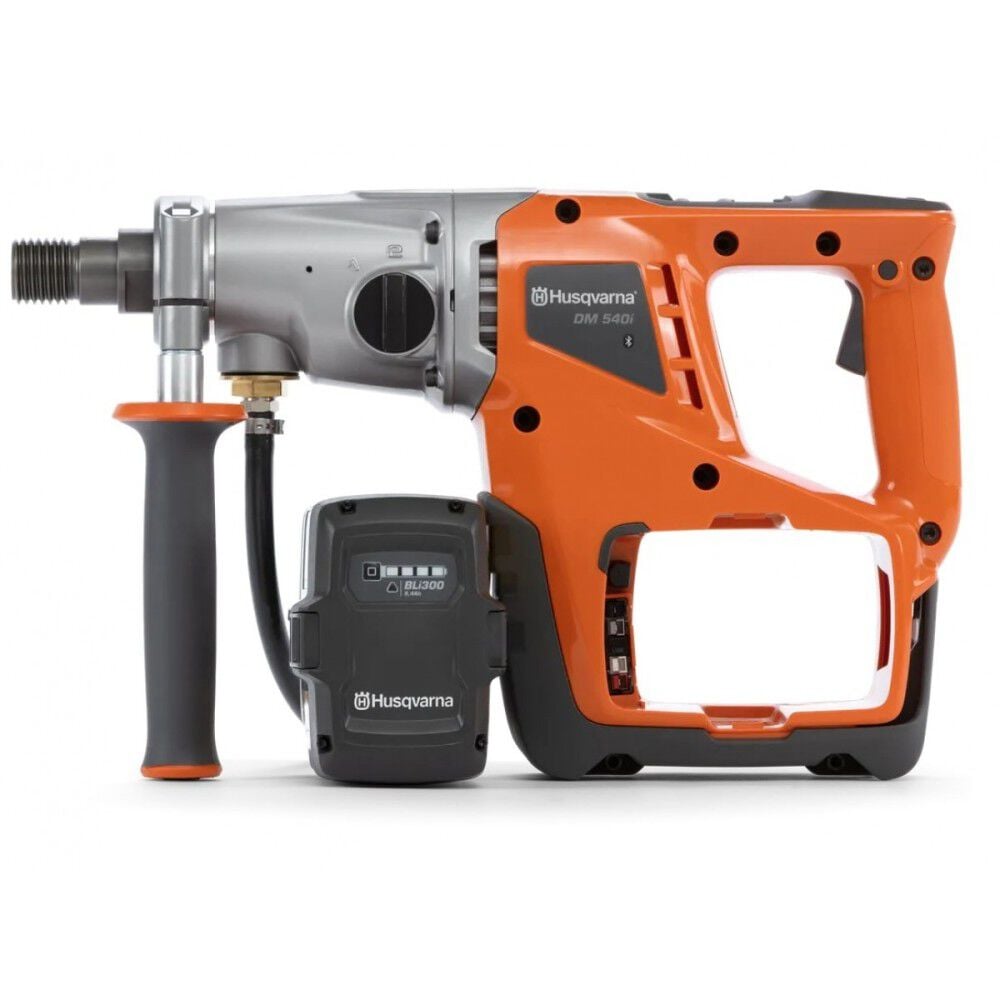

Coring clean plumbing penetrations without electrical shock hazards or extension cords speeds up work in flooded basements. The Husqvarna DM 540i Core Drill Bare bores 3-Inch concrete holes using cordless brushless motor torque. You guide downfeed with two hands. This bare tool package omits batteries and chargers, requiring separate purchase of a Husqvarna 36V BLi battery to operate.

Cast aluminum forms the front transmission casing, dissipating gear friction heat while sealing oil bath lubrication inside. A brushless motor runs on 36V BLi lithium battery lines, driving the spindle at 770 and 1320 RPM with electronic speed regulation. Internal friction clutches protect motor windings from sudden diamond bit jams. The bare tool scales at 10.8 lbs, measuring 16.5 inches long to fit inside cramped residential crawlspaces and plumbing wall cavities.

Key Features of Husqvarna DM540i

Contractors buy Husqvarna DM 540i bare tools to expand their 36V cordless fleet without buying redundant batteries. The lightweight chassis delivers steady rotational torque for core drilling concrete walls without generator power lines indoors.

• High-output 36V brushless motor delivers steady spindle torque to drill concrete up to 3-Inch diameter.
• Two-speed electronic transmission provides 770 and 1320 RPM to match diamond core bit sizes.
• Mechanical safety slip clutch breaks rotational drive during bit binds to protect operator wrists.
• Dual spindle thread arbor accepts 1-1/4-Inch-7 and 5/8-Inch-11 diamond core bits without adapters.
• Integrated water swivel feeds water through the spindle center for clean wet concrete coring.

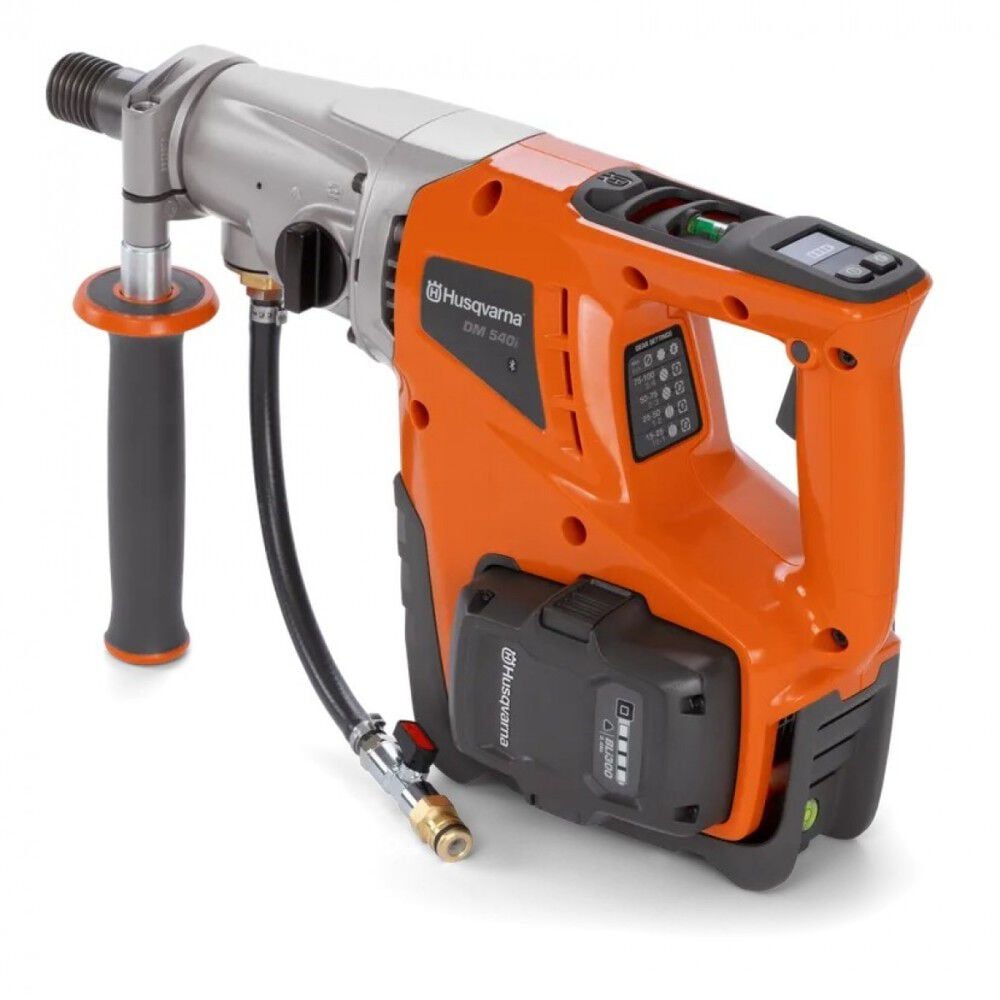

• Built-in digital level guide helps technicians maintain straight hole alignment during freehand drilling.
• Compact 10.8-lb chassis balances tool weight for horizontal penetrations and overhead anchor work.

Cordless Core Spindle Bench Metrics

Bench dynamometer testing proves the 36V brushless motor holds spindle speed at 1280 RPM in second gear while drilling a 2-Inch diamond bit through 4000 PSI cured concrete. The mechanical slip clutch breaks traction at 24 foot-pounds of sudden resistance, protecting operator wrists when diamond segments strike buried steel rebar. Current draw remains stable without thermal battery sag across three complete 6-Inch deep coring cycles. The aluminum front gear casing holds temperatures below 118 degrees Fahrenheit across 30-Minutes of continuous wet drilling tests.

Jobsite Handling Operational Field Limits

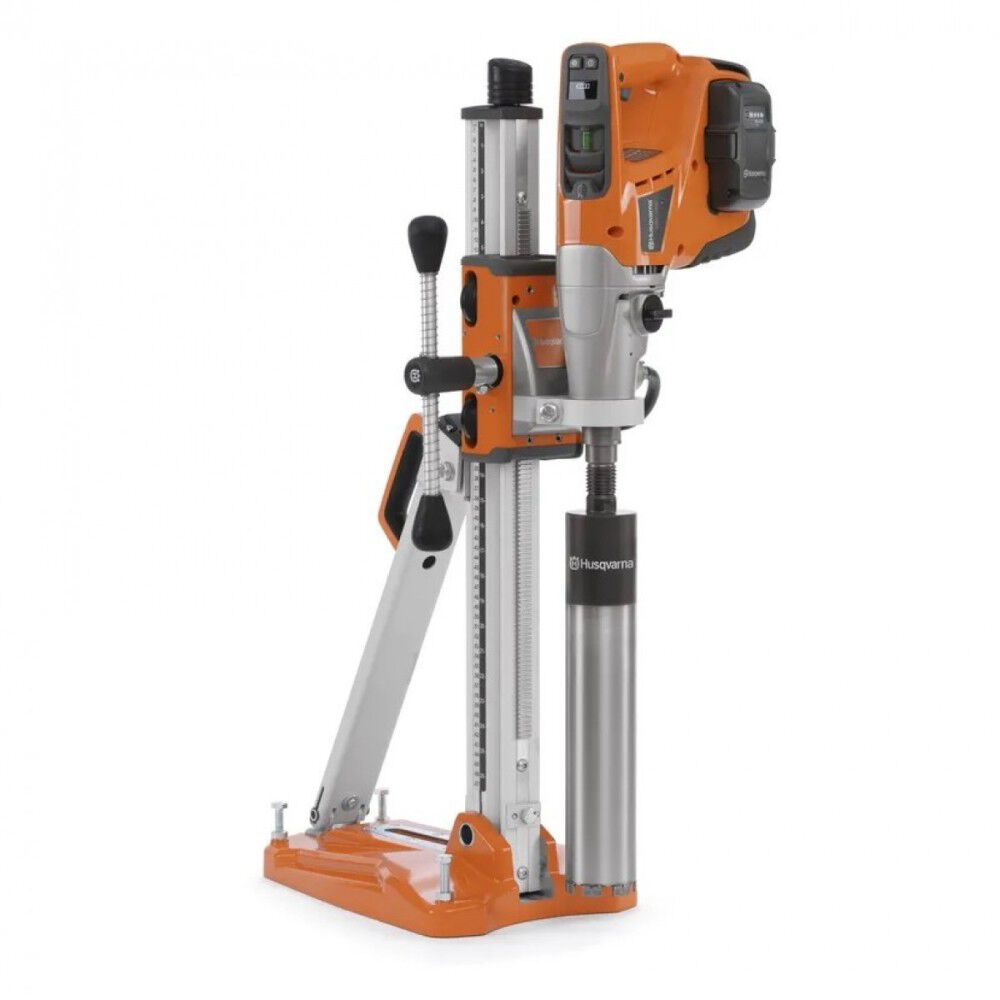

The contoured rear D-handle and clamp-on side grip give you solid two-hand control during horizontal wall coring. Skip freehand handheld coring on bits exceeding 3-Inch diameter in reinforced concrete. Large bits produce dangerous rotational bind torque that demands mounting the motor onto an anchored drill rig stand. Turn on water flow before engaging the diamond bit into concrete.

• Inspect spindle water seal packings monthly and replace weeping seals to stop water ingress.
• Blow concrete dust out of the battery connection terminals using clean compressed air each week.
• Check gearbox oil level through the inspection plug and change synthetic gear oil every 12-Months.

Factory Warranty Standard Package Inclusions

Husqvarna backs the DM 540i bare drill motor with a 1-Year commercial warranty covering manufacturer defects. The heavy carrying case delivers the handheld drill motor, a side handle, a brass water swivel valve, open-end wrenches, and an operator manual. Battery pack and charger sold separately.
