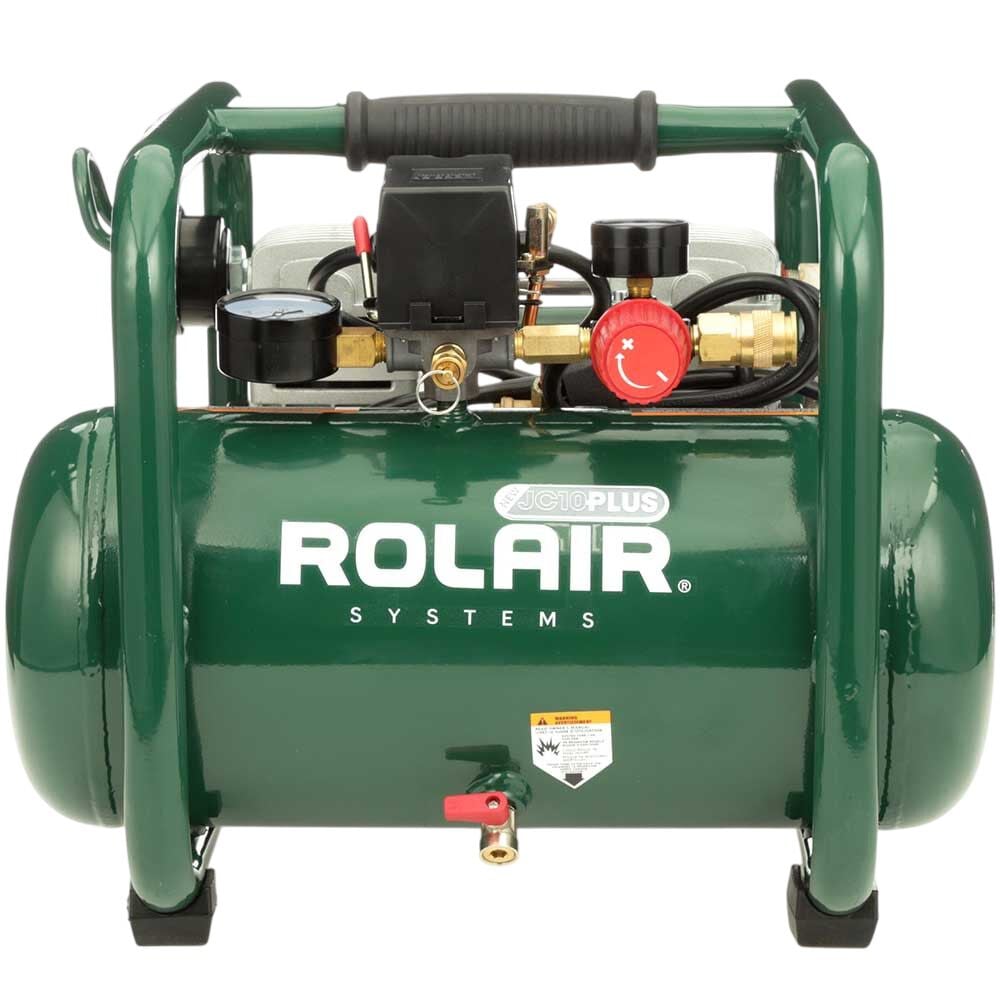

Rolair 1 HP – Ultra-Quiet (115V) 2.4CFM@90PSI 2.5 Gallon Oil Less Compressor

Description

Drive finish brad nailers with the Rolair 1HP 2.5-Gallon Quiet Compressor to install shoe molding, door casings, and window trim inside occupied homes without disturbing clients. The 1.0 HP low-RPM electric motor powers an oil-free dual-cylinder pump producing 2.4 CFM at 90 PSI across a horizontal 2.5-gallon tank up to 135 PSI with an ultra-quiet 60 dBA sound rating. Finish carpenters work indoors without earplugs. The direct-drive pump draws 8 amps at 115V on standard 15A circuits.

Recovery Cycle Dynamic Bench Limits

Flowmeter bench testing confirms delivered air output measures 2.4 CFM at 90 PSI and 3.4 CFM at 40 PSI, supporting two finish carpenters firing brad nailers and crown staplers at production speeds cleanly. Tank pump-up from zero to 135 PSI cut-out takes 82 seconds, with recovery cycle time from 105-PSI cut-in to 135-PSI cut-out clocking at 22 seconds across the 2.5-gallon tank. Operating sound levels register at 60 dBA, allowing normal conversation directly beside the running unit. The low-amp 1720 RPM motor draws 8 amps under peak cut-out pressure.

Precision-machined aluminum forms the dual-cylinder pump block, featuring Teflon-coated piston rings that eliminate crankcase oil maintenance and wood surface staining. A heavy-duty tubular steel roll cage protects the motor shroud, pressure switch, and brass manifold gauges from jobsite tip-overs. Sized for residential finish work, the portable compressor weighs 39 lbs, measuring 17 inches long, 16 inches wide, and 15 inches high, featuring non-marking rubber feet that prevent floor vibration scuffs.

Key Features of Rolair JC10PLUS

Finish carpenters and cabinet installers buy Rolair 1HP 2.5-Gallon Quiet Compressors to complete punch-out trim work inside occupied residential homes. Compare commercial quiet portable air compressor pricing to equip your finish carpentry crew with ultra-quiet pneumatic power.

• Ultra-quiet 60 dBA operational sound rating allows trim installation inside occupied homes without hearing protection cleanly.
• Low-RPM 1720 RPM motor runs cooler and lasts longer than screaming 3450 RPM direct-drive competitor units cleanly.
• Oil-free dual-cylinder pump delivers 2.4 CFM at 90 PSI, requiring zero oil changes and preventing wood surface stains.
• All-steel roll cage frame wraps around the pump, motor, and gauges to protect components from severe jobsite impacts.
• Quarter-turn brass drain ball valve purges accumulated condensation quickly without requiring pliers or special hand tools.

Quiet Trim Negative Selection Filter

The cushioned center carry handle balances the thirty-nine-pound tool comfortably in one hand during room-to-room punch lists. Do not purchase this quiet finish compressor for production framing crews running three framing nailers simultaneously, continuous sandblasting, or high-volume paint spray guns requiring continuous high CFM. Routine care requires opening the bottom brass tank drain valve daily after work, inspecting air coupler O-rings for leaks, and blowing dust off the motor shroud.

Factory Warranty Delivery Manifest

Rolair covers this quiet portable compressor with a 1-Year limited manufacturer warranty against motor failures, pump component defects, and pressure switch circuitry. The factory shipment carton includes one assembled 2.5-gallon quiet compressor, air intake filter assembly, and an illustrated technical instruction manual.
