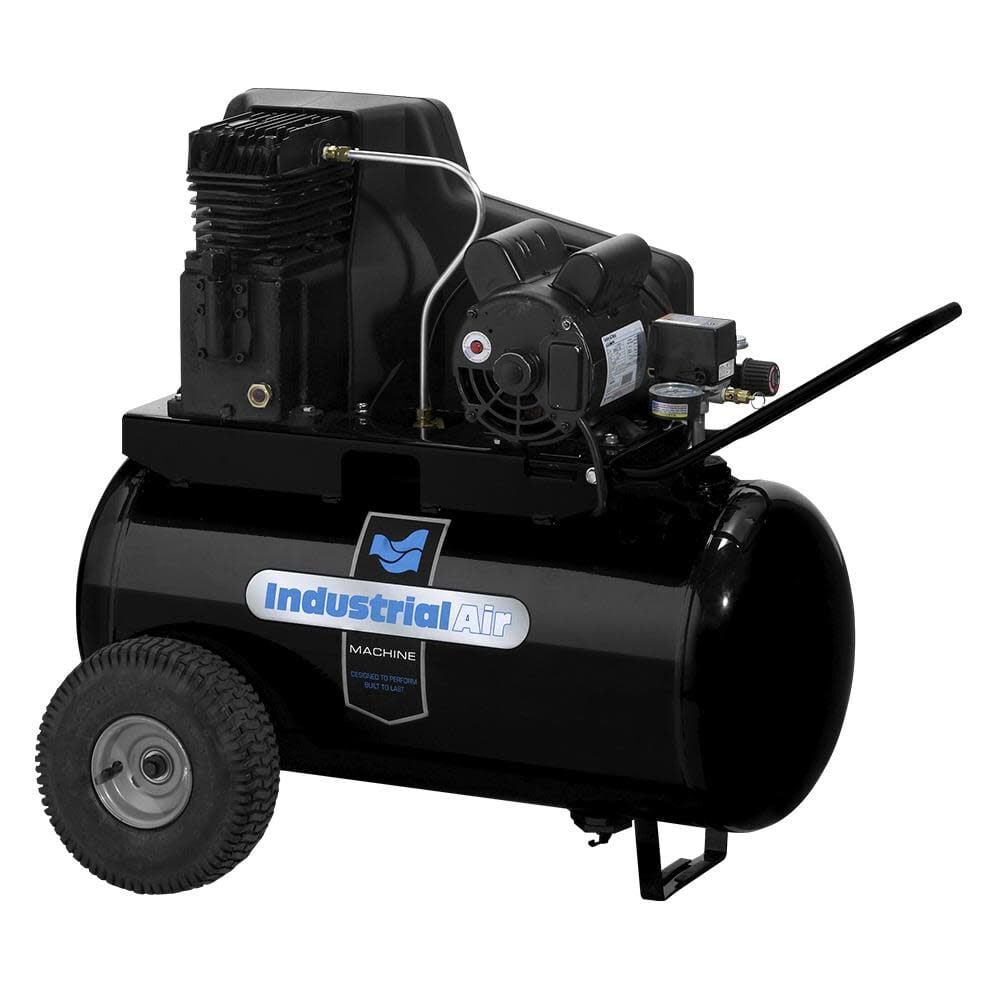

Industrial Air Compressor 1.9 HP Horizontal In Line Cast Iron Pump 20 Gallon

Description

Meet commercial garage air standards with the Industrial Air 1.9HP 20-Gallon Compressor to run automotive impact wrenches, ratchets, and tire inflators in home shops and light service bays. A commercial 1.9 HP induction motor drives an in-line 2-cylinder cast-iron pump producing 5.7 CFM at 90 PSI across a horizontal 20-gallon ASME receiver up to 155 PSI. Mechanics complete brake jobs and tire rotations with fast tank recovery. The dual-voltage motor draws 15 amps at 120V, operating on dedicated 20A branch circuits.

Solid ASTM Class 30 cast iron forms the in-line 2-cylinder pump block, crankcase, and deep-finned cylinder head, delivering superior thermal conductivity and long cylinder bore life. Heavy-gauge certified steel forms the horizontal 20-gallon ASME receiver tank, finished in durable industrial red powder coat. Ten-inch semi-pneumatic wheels and a balanced steel handle provide shop mobility. Sized for commercial garages, the wheeled compressor weighs 148 lbs, measuring 39 inches long, 19 inches wide, and 30 inches high.

Recovery Cycle Dynamic Bench Limits

Flowmeter bench testing confirms actual delivered air output measures 5.7 CFM at 90 PSI and 7.0 CFM at 40 PSI, supporting 1/2-inch air impact wrenches and pneumatic grease guns cleanly. Tank pump-up from zero to 155 PSI cut-out completes in 230 seconds, with recovery cycle time from 125-PSI cut-in to 155-PSI cut-out clocking at 45 seconds. The low-RPM cast-iron pump runs at 1050 RPM, holding cylinder head temperatures below 160 degrees Fahrenheit during continuous cycling trials in 90-degree ambient shop weather.

Key Features of Industrial Air ILA1882065

Automotive service garages and farm equipment mechanics buy Industrial Air 1.9HP 20-Gallon Compressors to run air ratchets, impact guns, and paint touch-up sprayers. Compare commercial portable horizontal shop air compressor pricing to upgrade your garage pneumatic equipment.

• Solid cast-iron in-line 2-cylinder pump delivers 5.7 CFM at 90 PSI, running cool at 1050 RPM for long commercial service life cleanly.
• ASME-certified 20-gallon horizontal steel tank stores substantial air volume, dampening pressure drops during heavy air tool use.
• Commercial 1.9 HP electric motor features manual thermal overload reset protection and dual-voltage 120V and 240V operation cleanly.
• Cast-iron flywheel with deep fan blades drives high-velocity cooling air across cylinder fins to lower operating heat cleanly.
• Ten-inch semi-pneumatic wheels and balanced steel pull handle provide smooth mobility across cracked garage floors cleanly.
• Dual brass quick-connect couplers allow two operators to run air hoses simultaneously off a single compressor cleanly.

Auto Repair Negative Selection Filter

The industrial glass oil sight gauge provides immediate visual verification of proper crankcase lubricant level. Do not purchase this 1-stage compressor for industrial sandblasting requiring over 15 CFM continuously, commercial multi-booth paint lines, or sharing 15A household circuits with other appliances. Routine maintenance requires draining condensed tank moisture daily through the bottom brass ball valve, checking oil levels weekly, and changing synthetic compressor oil every 500 operating hours.

Factory Warranty Delivery Manifest

Industrial Air backs this wheeled horizontal air compressor with a 2-Year limited manufacturer warranty covering pump casting defects, motor failures, and ASME tank integrity. The factory shipment crate includes one 20-gallon wheeled compressor, semi-pneumatic wheels, initial oil fill, air filter assembly, and user manual.
