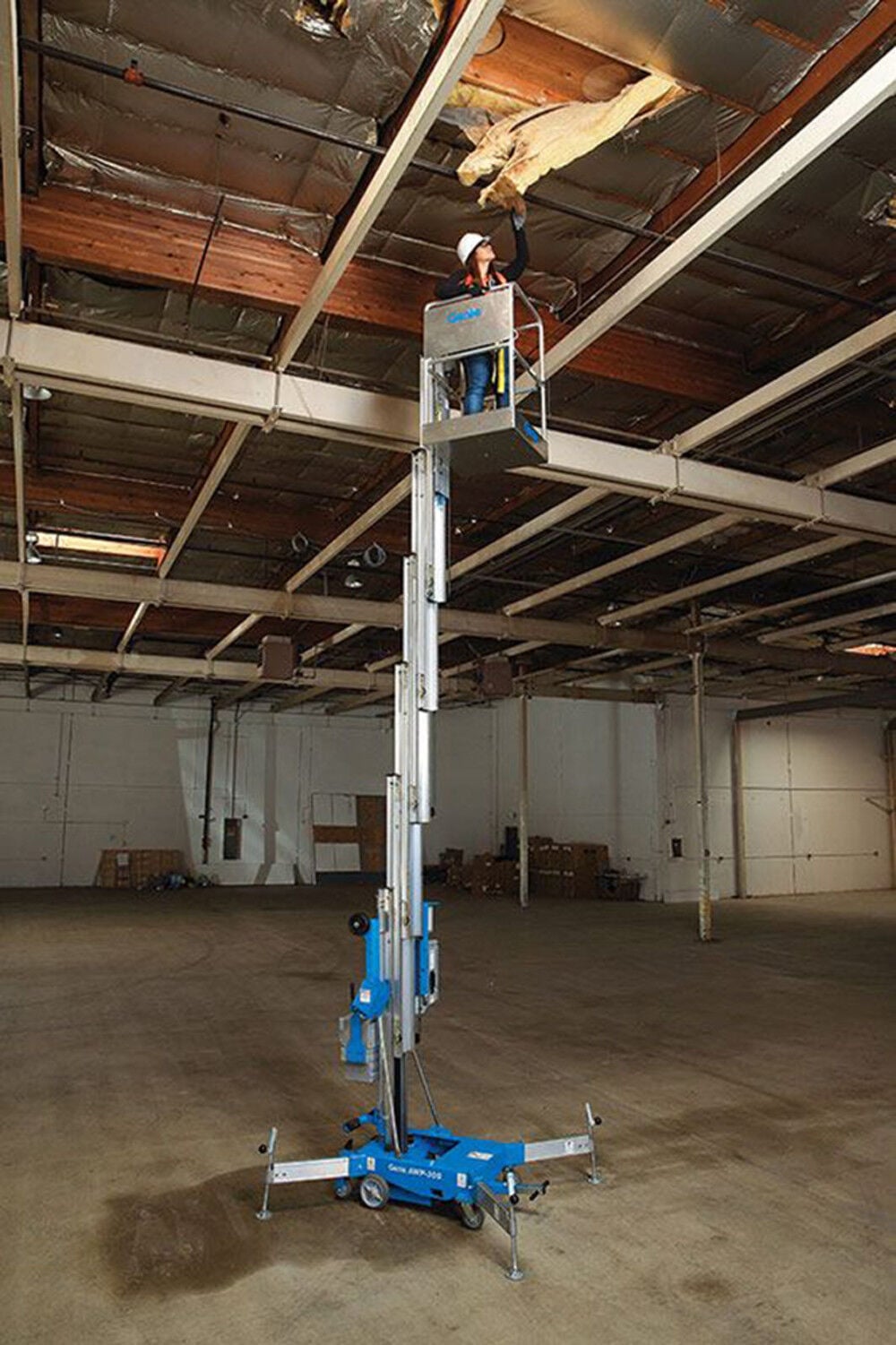

Genie 30 Ft. DC Power Super Series Aerial Work Platform

Description

Indoor architectural lighting repairs demand vertical elevation without floor scuffing or electrical cords. The Genie 30 Ft. DC Power Super Series aerial work platform provides 29-foot 6-inch platform heights on sensitive flooring. Hydraulic system pressure limits at 2200 PSI. Manual push-around movement requires physical operator effort, creating transport fatigue when rolling across plush carpet.

Aircraft-grade extruded aluminum mast sections utilize an internal chain sequencing mechanism with composite guide blocks that resist side thrust. The welded steel base chassis features outrigger socket pockets with electrical interlock switches that verify base stability before basket elevation. An onboard 12-volt DC powerpack couples a heavy-duty electric motor to an aluminum gear pump. Non-marking polyurethane wheels provide minimal rolling resistance.

Push Around Mast Hardware Platform

Manual push-around operation reduces electrical complexity and completely eliminates drive tire maintenance. Automatic outrigger interlock switches confirm positive base ground pressure before the mast ascends.

• 29-foot 6-inch platform elevation reaches a 35-foot 6-inch ceiling working height.
• 350 lb platform load capacity accommodates one worker and necessary hand tools.
• 29-inch base width rolls through standard single interior doorways with ease.
• 12-volt DC deep-cycle battery provides cord-free lifting operation in remote rooms.
• Built-in automatic charger replenishes battery cells from standard wall outlets.
• Rear tilt-back transport frame clears low doorways during machine relocation.
• Non-marking polyurethane wheels prevent surface scuffs on finished gymnasium floors.

DC Electrical Telemetry Thermal Verification

Current monitoring logs record 84 Amps draw from the 12-volt battery pack during vertical platform ascent with 350 lb payload. Motor casing temperature rises to 120°F after four continuous elevation cycles in an 80°F room. Hydraulic fluid in the 1.5-gallon reservoir warms to 112°F during cyclic testing. System hydraulic pressure holds at 2200 PSI at full cylinder stroke. Acoustic noise registers at 56 dBA at 7 meters during full elevation.

Operating Bounds Preventive Maintenance Directives

Never roll this push-around machine over unpaved exterior gravel, cracked concrete expansion joints, or wet dirt. Small polyurethane wheels will sink and high-center the low-clearance chassis base.

• Check battery fluid levels and clean terminal posts every 30 operational hours.
• Inspect mast sequencing leaf chains and lubricate with light oil every 100 hours.
• Test outrigger interlock safety circuits for positive cutoff function every week.

Factory Warranty Standard Delivery Manifest

Genie supports this equipment with a 1-Year mechanical warranty backed by 5-Year structural mast coverage. Delivery manifest contains the AWP-30S vertical mast lift, 12-volt deep-cycle battery, onboard smart charger, four detachable outrigger struts, tilt-back transport mechanism, and factory operation documentation.
